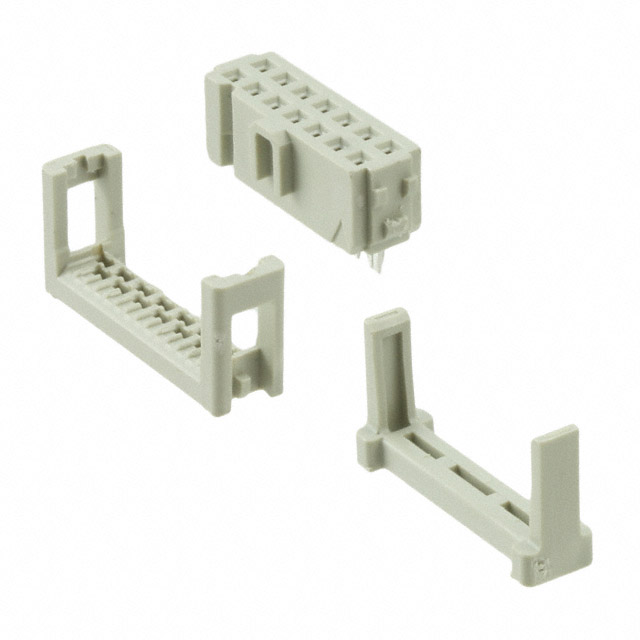

09185146813

Share

Or copy the link below:

Mfr.Part #
09185146813
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description
CONN RCPT 14POS IDC 26-28AWG
Stock
23
In Stock :
23

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Free Hanging, Panel Mount
Wire Gauge :
26-28 AWG
Contact Type :
Female Socket
Lead Pitch :
2.54mm
Total Number of Contacts :
14
Housing Material :
Plastic
Color :
Grey
Current Rating :
2A
Contact Plating :
Gold
MIL Conformance :
No
Cable Termination :
IDC
Packaging :
Tray
RoHS Status :
ROHS3 Compliant
Voltage - Rated DC :
350V
Connector Type :
Receptacle
Max Operating Temperature :
105°C
Min Operating Temperature :
-40°C
Number of Poles :
14
Wire Gauge (Max) :
28 AWG
Row Spacing :
0.100 (2.54mm)
Option :
GENERAL PURPOSE
Wire/Cable Type :
Ribbon
Contact Design :
PREASSEM CONN
Polarization Key :
CENTER
Mounting Type :
Free Hanging (In-Line)
Wire Gauge (Min) :
26 AWG
Orientation :
RIGHT ANGLE
Factory Lead Time :
4 Weeks
Body/Shell Style :
PLUG
Pitch :
0.100 2.54mm
Insulation Resistance :
1GOhm
Test Voltage :
500V
Additional Feature :
STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Length :
22.4mm
Termination :
IDT
Voltage - Rated AC :
350V
Depth :
6.1mm
Wire Type :
Ribbon Cable
Mount :
Cable, Free Hanging
REACH SVHC :
No SVHC
IEC Conformance :
yes
Height :
14.5mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Material :
Brass
Filter Feature :
No
Feature :
Feed Through, Polarizing Key, Strain Relief
Width :
22.4mm
Flammability Rating :
UL94 V-0
DIN Conformance :
yes
Lead Free :
Lead Free
Number of Rows :
2
Rated Current (Signal) :
2A
Contact Current Rating :
1A
Pbfree Code :
yes
Contact Resistance :
20mOhm
Contact Finish - Mating :
NOT SPECIFIED
Mixed Contacts :
No
UL Flammability Code :
94V-0
Series :
SEK
Reliability :
COMMERCIAL
Reference Standard :
UL
Introducing Free Hanging, Panel Mount HARTING 09185146813 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 09185146813 pinout, 09185146813 datasheet PDF, 09185146813 amp .Beyond Free Hanging, Panel Mount HARTING 09185146813 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.
