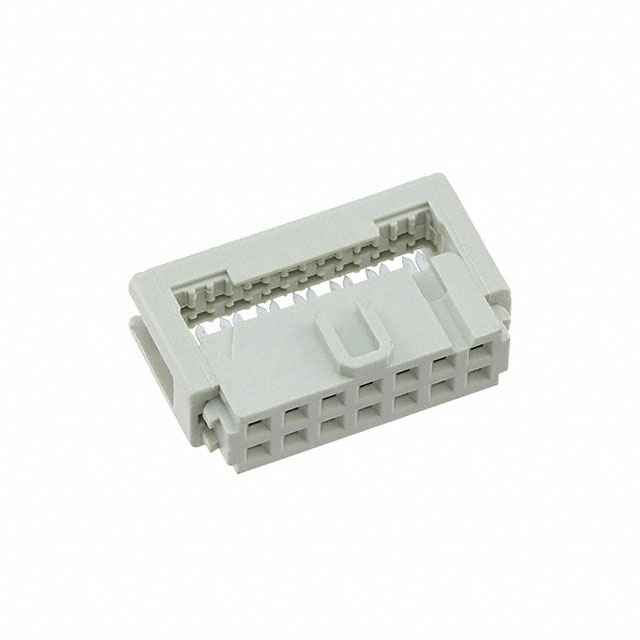

09185146804

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Insulation Resistance :

1000000000Ohm

Polarization Key :

CENTER

Number of Positions :

14

Voltage - Rated :

320V

Contact Material :

Thermoplastic

DIN Conformance :

yes

Contact Type :

Female Socket

RoHS Status :

ROHS3 Compliant

Current Rating :

2A

Body/Shell Style :

PLUG

MIL Conformance :

No

IEC Conformance :

yes

Packaging :

Bulk

Filter Feature :

No

Contact Gender :

FEMALE

Number of Rows :

2

Lead Free :

Lead Free

Mixed Contacts :

No

Pitch :

0.100 2.54mm

Termination Type :

IDC

Option :

GENERAL PURPOSE

Wire/Cable Type :

Ribbon

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Connector Type :

Receptacle

Factory Lead Time :

7 Weeks

Reference Standard :

UL

Total Number of Contacts :

14

Wire Type :

Ribbon Cable

Wire Gauge (Max) :

28 AWG

Row Spacing :

0.100 (2.54mm)

Orientation :

Straight

Feature :

Closed End, Polarizing Key

Wire Gauge :

26-28 AWG

Rated Current (Signal) :

2A

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

PBTP 30% FIBRE ENHANCED

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Mount :

Free Hanging

Reliability :

COMMERCIAL

Wire Gauge (Min) :

26 AWG

Cable Termination :

IDC

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Series :

SEK
