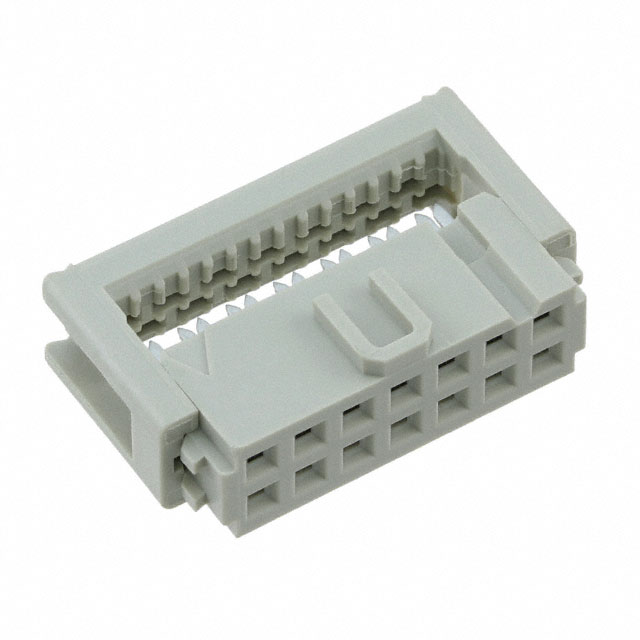

09185146803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Reliability :

COMMERCIAL

Number of Rows :

2

Wire Gauge (Min) :

26 AWG

Polarization Key :

CENTER

Row Spacing :

0.100 (2.54mm)

Insulation Resistance :

1000000000Ohm

Depth :

6.1mm

Number of Contacts :

14

Feature :

Feed Through, Polarizing Key

Mounting Type :

Free Hanging (In-Line)

Wire/Cable Type :

Ribbon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.100 2.54mm

Cable Termination :

IDC

Orientation :

RIGHT ANGLE

Length :

22.4mm

Packaging :

Tray

Option :

GENERAL PURPOSE

Mount :

Cable, Free Hanging

Lead Pitch :

2.54mm

IEC Conformance :

yes

Body/Shell Style :

PLUG

Wire Type :

Ribbon Cable

Series :

SEK

Connector Type :

Receptacle

Pbfree Code :

yes

Contact Material :

Brass

Filter Feature :

No

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

UL Flammability Code :

94V-0

Contact Finish - Mating :

NOT SPECIFIED

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

Wire Gauge (Max) :

28 AWG

REACH SVHC :

No SVHC

Contact Plating :

Gold

ECCN Code :

EAR99

Insulation Material :

PBTP 30% FIBRE ENHANCED

Contact Type :

Female Socket

Termination :

IDT

HTS Code :

8536.69.40.40

DIN Conformance :

yes

Reference Standard :

UL

MIL Conformance :

No

Factory Lead Time :

4 Weeks

Mixed Contacts :

No

Rated Current (Signal) :

2A

Wire Gauge :

26-28 AWG

Number of Conductors :

ONE

Contact Design :

PREASSEM CONN
