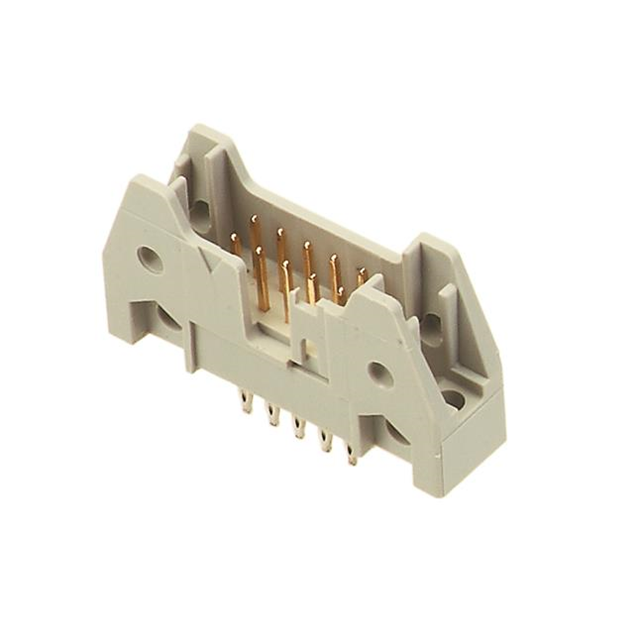

09185145929
Or copy the link below:
- Mfr.Part #
- 09185145929
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 11,674
- In Stock ：
- 11,674
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Length - Post :
- 0.177 4.50mm
- Connector Type :
- Header
- Overall Contact Length :
- 0.713 18.10mm
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.690 17.53mm
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 14
- Termination :
- Press-Fit, Solder
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Gray
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Type :
- Male Pin
- Number of Rows :
- 2
- Series :
- SEK
- Color :
- Grey
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Feature :
- Keying Slot, Mounting Flange
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- HTS Code :
- 8536.69.40.40
- Fastening Type :
- Push-Pull
- Pitch - Mating :
- 0.100 2.54mm
- Datasheets
- 09185145929
SEK Series 2-Row Header Press-Fit, Solder Bulk Through Hole Gold 14-Position Board to Cable/Wire 0.690 17.53mm Height
09185145929 Overview
The packaging is Header.Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the SEK Series.A number of advantages are provided by its Keying Slot, Mounting Flange feature.Mounted by Through Hole.
09185145929 Features
SEK series
09185145929 Applications
There are a lot of HARTING
09185145929 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
