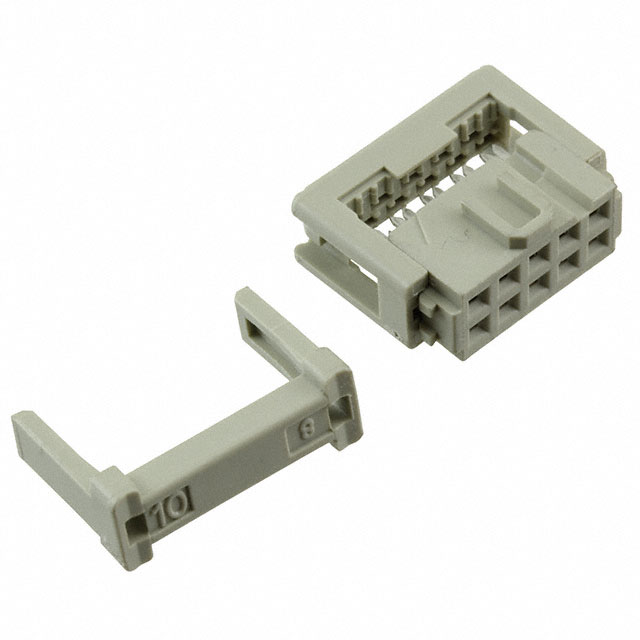

09185106814

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Row Spacing :

0.100 (2.54mm)

Rated Current (Signal) :

2A

Total Number of Contacts :

10

Filter Feature :

No

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C

Wire Gauge :

26-28 AWG

Series :

SEK

Contact Material :

Copper

IEC Conformance :

yes

Reliability :

COMMERCIAL

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Mount :

Free Hanging

Cable Termination :

IDC

Termination Type :

IDC

Factory Lead Time :

7 Weeks

Wire/Cable Type :

Ribbon

Packaging :

Bulk

Body/Shell Style :

PLUG

Wire Type :

Ribbon Cable

Reference Standard :

UL

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Body Length or Diameter :

0.681 inch

Number of Positions :

10

Pitch :

0.100 2.54mm

Wire Gauge (Min) :

26 AWG

Wire Gauge (Max) :

28 AWG

Mixed Contacts :

No

Polarization Key :

CENTER

REACH SVHC :

No SVHC

Contact Finish - Mating :

NOT SPECIFIED

Insulation Material :

PBTP 30% FIBRE ENHANCED

DIN Conformance :

yes

UL Flammability Code :

94V-0

Feature :

Closed End, Polarizing Key, Strain Relief

Contact Type :

Female Socket

Contact Design :

PREASSEM CONN

Number of Rows :

2
