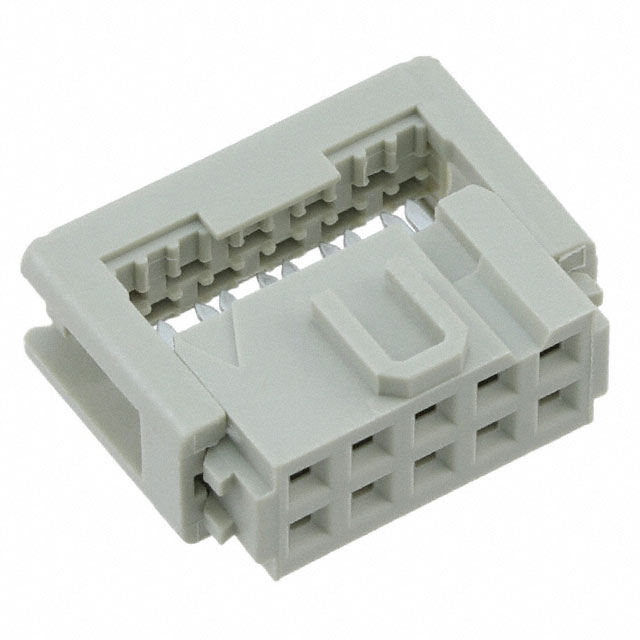

09185106804

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Mount :

Free Hanging

Contact Material :

Thermoplastic

Mixed Contacts :

No

IEC Conformance :

yes

Filter Feature :

No

Current Rating :

1A

Mounting Type :

Free Hanging (In-Line)

Cable Termination :

IDC

HTS Code :

8536.69.40.40

Contact Design :

PREASSEM CONN

Connector Type :

Receptacle

Total Number of Contacts :

10

Wire Gauge (Max) :

28 AWG

Number of Positions :

10

Feature :

Closed End, Polarizing Key

Contact Finish - Mating :

NOT SPECIFIED

Wire Gauge (Min) :

26 AWG

Body/Shell Style :

PLUG

Factory Lead Time :

7 Weeks

Wire/Cable Type :

Ribbon

Series :

SEK

ECCN Code :

EAR99

Insulation Material :

PBTP 30% FIBRE ENHANCED

Pbfree Code :

yes

DIN Conformance :

yes

Rated Current (Signal) :

2A

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Type :

IDC

Row Spacing :

0.100 (2.54mm)

Polarization Key :

CENTER

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Orientation :

Straight

Packaging :

Bulk

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Voltage - Rated :

320V

Wire Gauge :

26-28 AWG

Body Length or Diameter :

0.681 inch

Operating Temperature (Min) :

-55°C

MIL Conformance :

No

Reference Standard :

UL

Contact Type :

Female Socket

Pitch :

0.100 2.54mm

Option :

GENERAL PURPOSE

Wire Type :

Ribbon Cable

Reliability :

COMMERCIAL

Number of Rows :

2
