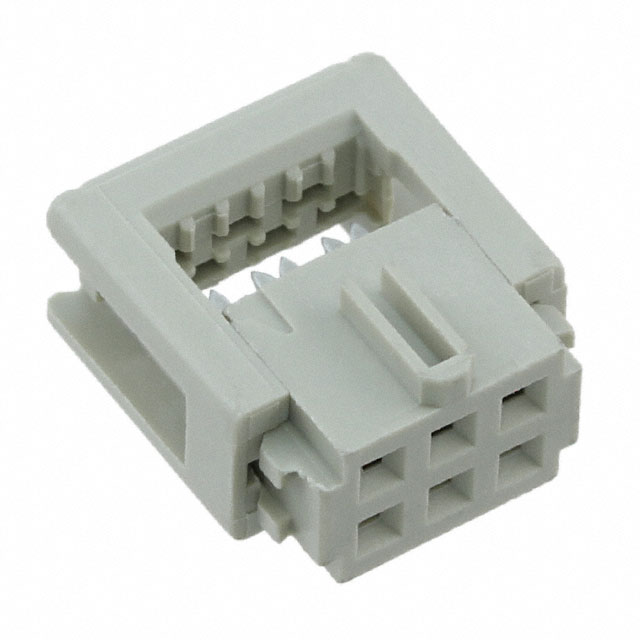

09185067803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Current Rating :

2A

Housing Material :

Polybutylene

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

6

Rated Current (Signal) :

2A

Orientation :

RIGHT ANGLE

Reliability :

COMMERCIAL

Pbfree Code :

yes

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Termination :

IDC, IDT

Row Spacing :

0.100 (2.54mm)

Min Operating Temperature :

-40°C

Cable Termination :

IDC

Series :

SEK

Contact Material :

Brass

Voltage - Rated DC :

350V

Voltage - Rated AC :

350V

Polarization Key :

CENTER

Depth :

7.2mm

MIL Conformance :

No

Contact Plating :

Gold

Insulation Resistance :

1GOhm

REACH SVHC :

No SVHC

Contact Gender :

FEMALE

Feature :

Feed Through, Polarizing Key

Number of Rows :

2

Color :

Grey

Wire Gauge (Min) :

26 AWG

Wire Gauge (Max) :

28 AWG

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Reference Standard :

UL

Contact Resistance :

20mOhm

Connector Type :

Receptacle

Mixed Contacts :

No

Number of Poles :

6

Length :

12.2mm

IEC Conformance :

yes

Mounting Type :

Free Hanging (In-Line)

Wire/Cable Type :

Ribbon

Max Current Rating :

1A

Wire Type :

Ribbon Cable

DIN Conformance :

yes

RoHS Status :

ROHS3 Compliant

Wire Gauge :

26-28 AWG

Pitch :

0.100 2.54mm

Max Operating Temperature :

125°C

Body/Shell Style :

PLUG

Durability :

50 Cycles

Packaging :

Bulk

Filter Feature :

No

Contact Current Rating :

1A

Factory Lead Time :

4 Weeks

Mount :

Cable, Free Hanging

Contact Type :

Female Socket
