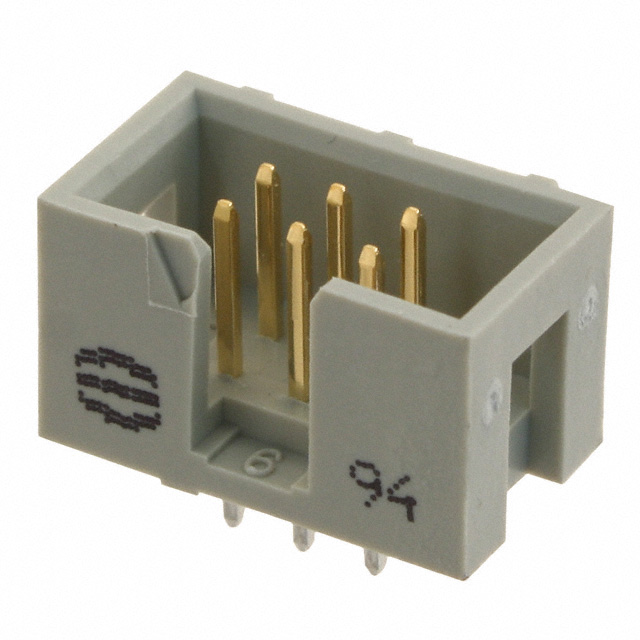

09185066324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Lead Length :

29mm

Orientation :

Straight

Pbfree Code :

yes

Mating Contact Pitch :

0.1 inch

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Connector Type :

Header

Mixed Contacts :

No

Insulation Resistance :

1000000000Ohm

Insulation Color :

Gray

Number of Positions Loaded :

All

Factory Lead Time :

4 Weeks

Gender :

Male

IEC Conformance :

yes

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Insulation Height :

0.350 8.89mm

Current Rating :

1A

Series :

SEK

Filter Feature :

No

Pitch - Mating :

0.100 2.54mm

Feature :

Keying Slot

Housing Material :

Polybutylene

Number of Rows :

2

Option :

GENERAL PURPOSE

Test Voltage :

1kV

Contact Type :

Male Pin

Contact Finish - Mating :

NOT SPECIFIED

Contact Length - Post :

0.114 2.90mm

Fastening Type :

Latch Holder

Packaging :

Tray

Depth :

9.2mm

Mount :

Through Hole

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Shrouding :

Shrouded - 4 Wall

Termination :

Solder

Length :

8.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

DIN Conformance :

yes

Color :

Grey

Contact Finish - Post :

Tin

Max Current Rating :

1A

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Contact Length - Mating :

0.240 6.10mm

Contact Material :

COPPER ALLOY

Width :

15.4mm

Operating Temperature :

-55°C~125°C

REACH SVHC :

No SVHC

Style :

Board to Cable/Wire

Number Of PCB Rows :

2

Material Flammability Rating :

UL94 V-0

Number of Positions :

6

Row Spacing - Mating :

0.100 (2.54mm)

Contact Plating :

Gold

Reference Standard :

UL

Contact Resistance :

20mOhm

Rated Current (Signal) :

2A

Height :

11.8mm
