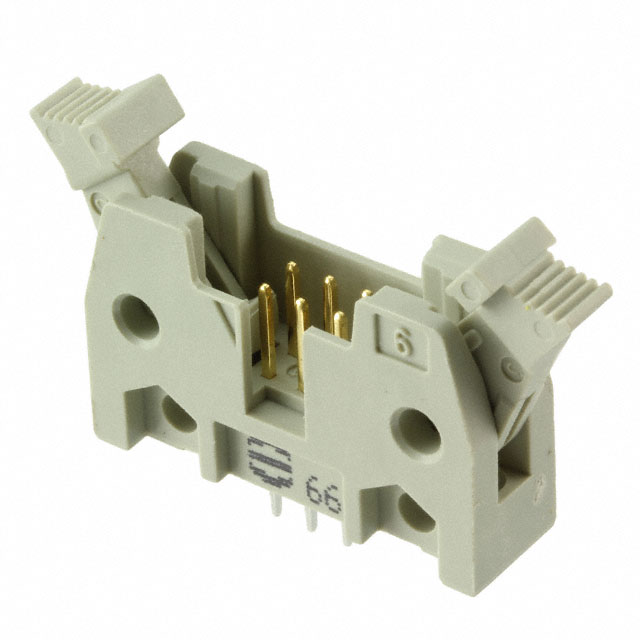

09185065914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Insulation Resistance :

1000000000Ohm

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

Mount :

Through Hole

Overall Contact Length :

0.650 16.51mm

Contact Finish - Post :

Tin

Pbfree Code :

yes

Filter Feature :

No

UL Flammability Code :

94V-0

Contact Shape :

Square

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Height :

0.681 17.30mm

Contact Length - Mating :

0.228 5.80mm

ECCN Code :

EAR99

Pitch - Mating :

0.100 2.54mm

Termination :

Solder

Insulation Color :

Gray

Number of Positions :

6

Contact Material :

COPPER ALLOY

Contact Finish - Mating :

Gold

Fastening Type :

Latch Lock/Eject Hooks, Short

Connector Type :

Header

Rated Current (Signal) :

2A

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Length - Termination :

0.114 inch

Reference Standard :

UL

DIN Conformance :

yes

Series :

SEK

Body Length or Diameter :

1.071 inch

Mounting Type :

Through Hole

Mixed Contacts :

No

Contact Length - Post :

0.114 2.90mm

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Body Breadth :

0.335 inch

Plating Thickness :

30μin

Option :

GENERAL PURPOSE

Factory Lead Time :

7 Weeks

Feature :

Keying Slot, Mounting Flange

Number Of PCB Rows :

2

Style :

Board to Cable/Wire

Number of Conductors :

ONE

Color :

Grey

Reliability :

COMMERCIAL

IEC Conformance :

No

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

Contact Type :

Male Pin

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

PCB Contact Pattern :

RECTANGULAR
