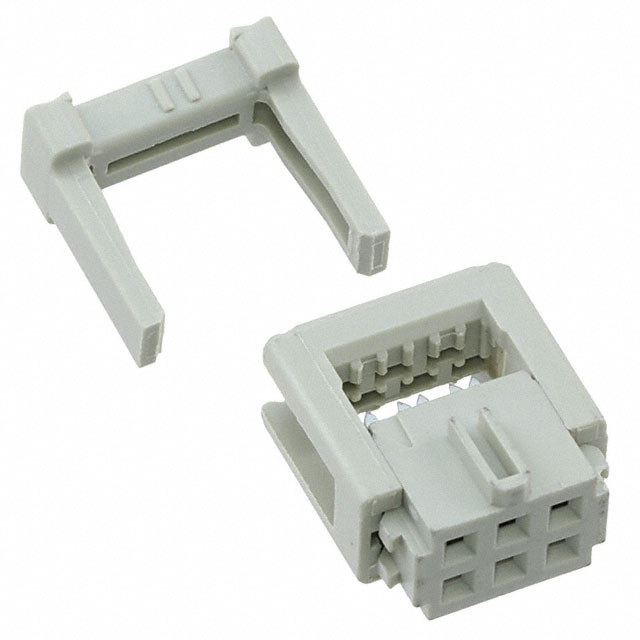

09185065813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire Type :

Ribbon Cable

Series :

SEK

Feature :

Feed Through, Polarizing Key, Strain Relief

Wire/Cable Type :

Ribbon

Packaging :

Bulk

Cable Termination :

IDC

Body/Shell Style :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Free Hanging

DIN Conformance :

yes

Connector Type :

Receptacle

MIL Conformance :

No

Contact Type :

Female Socket

Option :

GENERAL PURPOSE

Current Rating :

2A

Mounting Type :

Free Hanging (In-Line)

Termination Type :

IDC

Mixed Contacts :

No

Contact Finish Thickness :

30.0μin 0.76μm

Insulation Material :

PBTP 30% FIBRE ENHANCED

Operating Temperature (Min) :

-55°C

Row Spacing :

0.100 (2.54mm)

Number of Conductors :

ONE

IEC Conformance :

yes

ECCN Code :

EAR99

Contact Gender :

FEMALE

Voltage - Rated :

320V

Contact Material :

Thermoplastic

Number of Positions :

6

Rated Current (Signal) :

2A

Wire Gauge (Max) :

28 AWG

Number of Rows :

2

UL Flammability Code :

94V-0

Factory Lead Time :

7 Weeks

Body Length or Diameter :

0.48 inch

Insulation Resistance :

1000000000Ohm

Reference Standard :

UL

Wire Gauge (Min) :

26 AWG

Filter Feature :

No

Wire Gauge :

26-28 AWG

Orientation :

Straight

Polarization Key :

CENTER

Reliability :

COMMERCIAL

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Plating Thickness :

30μin

Pitch :

0.100 2.54mm

Total Number of Contacts :

6

Contact Finish :

Gold
