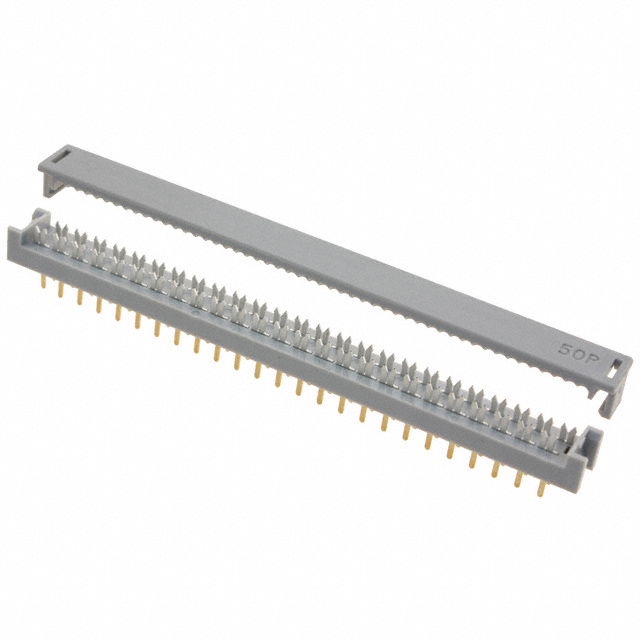

09181509622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Cable Termination :

IDC

Number of Conductors :

ONE

Factory Lead Time :

7 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulator Color :

Gray

Mount :

Cable, Through Hole

Number of Positions Loaded :

All

Number of Rows :

2

Reference Standard :

UL

Contact Resistance :

10MOhm

Number of Positions :

50

PCB Contact Pattern :

RECTANGULAR

Gender :

Receptacle

Orientation :

RIGHT ANGLE

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Polarization Key :

POLARIZED HOUSING

Series :

SEK

Board-Side Pitch :

0.100 2.54mm

Housing Material :

PBT

Row Spacing :

0.100 (2.54mm)

Current Rating :

1A

Number Of PCB Rows :

2

Length - Termination :

0.13 inch

Contact Finish - Mating :

NOT SPECIFIED

Min Operating Temperature :

-55°C

PCB Thickness :

127mm

Contact Style :

IDC

Reliability :

COMMERCIAL

Termination :

Press-Fit

Contact Pattern :

RECTANGULAR

Height :

5.5mm

Body Depth :

0.177 inch

Mounting Type :

Through Hole

Contact Material :

Nickel, Tin

Total Number of Contacts :

50

Packaging :

Bulk

Feature :

Feed Through

Max Operating Temperature :

105°C

Connector Type :

Ribbon Cable, DIP Header

Rated Current (Signal) :

2A

Pitch :

2.54mm
