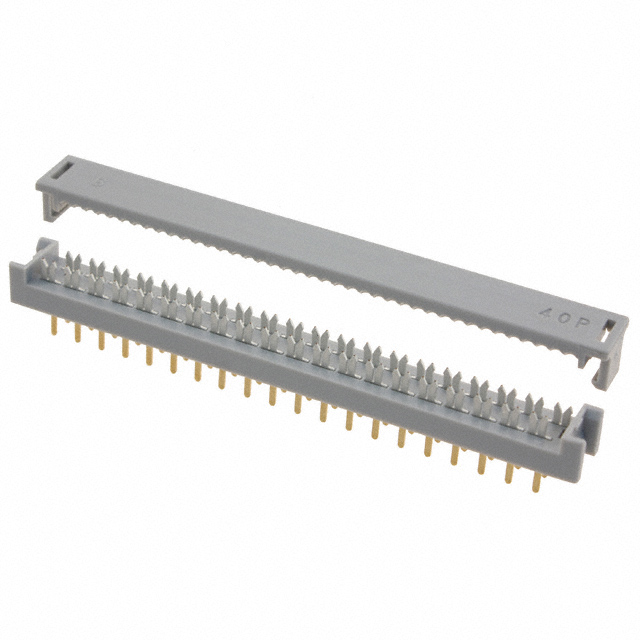

09181409622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Width :

56.1mm

Cable Termination :

IDC

Gender :

Male

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Lead Length :

3.3mm

Number of Rows :

2

Contact Pattern :

RECTANGULAR

Test Voltage :

1kV

Contact Resistance :

15mOhm

Packaging :

Tray

Max Current Rating :

1A

Contact Material :

Nickel, Tin

Total Number of Contacts :

40

Hole Diameter :

1 mm

Insulation Resistance :

10MOhm

Number Of PCB Rows :

2

Min Operating Temperature :

-55°C

Housing Material :

Polybutylene

Connector Type :

Ribbon Cable, DIP Header

Length :

56.1mm

Contact Style :

IDC

Series :

SEK

RoHS Status :

ROHS3 Compliant

Number of Positions :

40

PCB Thickness :

127mm

Flammability Rating :

UL94 V-0

Board-Side Pitch :

0.100 2.54mm

Material :

PBT, Resin, Thermoplastic

Depth :

6.1mm

Row Spacing :

0.100 (2.54mm)

Mounting Type :

Through Hole

Contact Finish - Mating :

NOT SPECIFIED

Pitch :

2.54mm

Height :

5.5mm

Max Operating Temperature :

105°C

Feature :

Feed Through

Lead Pitch :

2.54mm

Orientation :

Straight

Current Rating :

1A

Factory Lead Time :

4 Weeks

Termination :

Through Hole

Reliability :

COMMERCIAL

Rated Current (Signal) :

2A

Reference Standard :

UL

Mount :

PCB, Through Hole

Number of Conductors :

ONE

REACH SVHC :

No SVHC

Color :

Grey

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR
