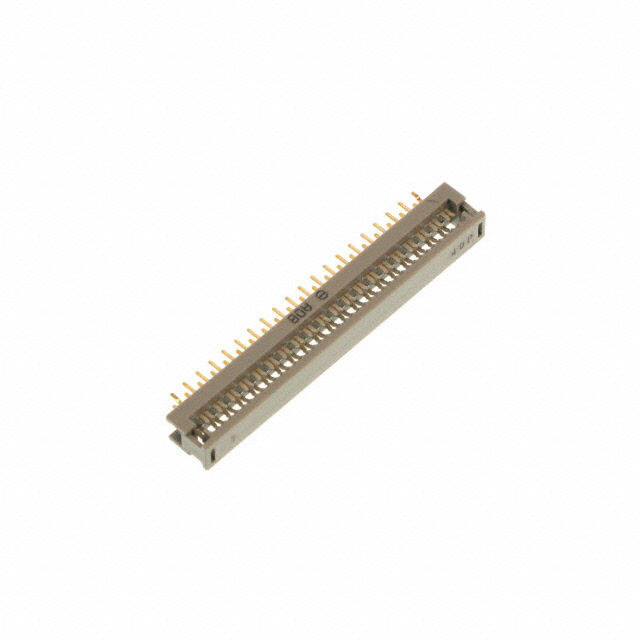

09181409422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Polarization Key :

POLARIZED HOUSING

Connector Type :

Ribbon Cable, DIP Header

Contact Resistance :

10MOhm

Housing Material :

Thermoplastic

Row Spacing :

0.100 (2.54mm)

Contact Pattern :

RECTANGULAR

Cable Termination :

IDC

Filter Feature :

No

Insulator Color :

Gray

Number of Positions :

40

Board-Side Pitch :

0.100 2.54mm

Rated Current (Signal) :

2A

Option :

GENERAL PURPOSE

Current Rating :

2A

Operating Temperature (Max) :

105°C

IEC Conformance :

No

Feature :

Feed Through

Body Depth :

0.177 inch

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Receptacle

Contact Finish - Mating :

NOT SPECIFIED

Series :

SEK

Packaging :

Bulk

Total Number of Contacts :

40

Height :

5.5mm

Mixed Contacts :

No

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

Length - Termination :

0.13 inch

Contact Style :

IDC

Factory Lead Time :

8 Weeks

Mounting Type :

Through Hole, Kinked Pin

REACH SVHC :

No SVHC

Number of Positions Loaded :

All

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Pitch :

2.54mm

Contact Material :

Nickel

Additional Feature :

LOW PROFILE

Number of Rows :

2

ECCN Code :

EAR99

DIN Conformance :

No

Mount :

Through Hole

Reference Standard :

UL

Number Of PCB Rows :

2

MIL Conformance :

No

Termination :

Through Hole
