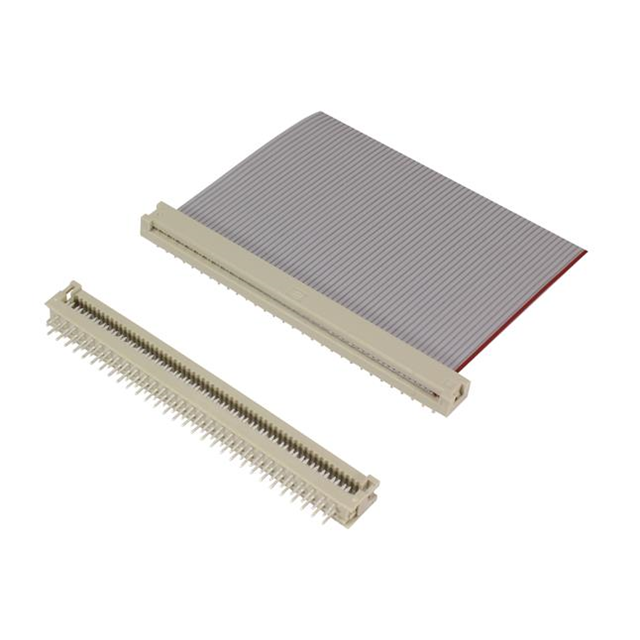

09181309422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Total Number of Contacts :

30

Packaging :

Bulk

Termination :

Through Hole

Length - Termination :

0.13 inch

IEC Conformance :

No

Pitch :

2.54mm

Cable Termination :

IDC

Series :

SEK

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Mount :

Through Hole

Contact Finish - Mating :

NOT SPECIFIED

Additional Feature :

LOW PROFILE

Number Of PCB Rows :

2

Number of Positions :

30

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Feed Through

RoHS Status :

ROHS3 Compliant

Number of Conductors :

ONE

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Insulator Color :

Gray

Board-Side Pitch :

0.100 2.54mm

Number of Positions Loaded :

All

Body Depth :

0.177 inch

Connector Type :

Ribbon Cable, DIP Header

Reference Standard :

UL

Rated Current (Signal) :

2A

Resistance :

2Ohm

Operating Temperature (Min) :

-55°C

Body Length or Diameter :

1.709 inch

Contact Style :

IDC

MIL Conformance :

No

Operating Temperature (Max) :

105°C

Contact Gender :

FEMALE

Mixed Contacts :

No

Filter Feature :

No

Factory Lead Time :

7 Weeks

Height :

5.5mm

Current Rating :

2A

Row Spacing :

0.100 (2.54mm)

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole, Kinked Pin

DIN Conformance :

No
