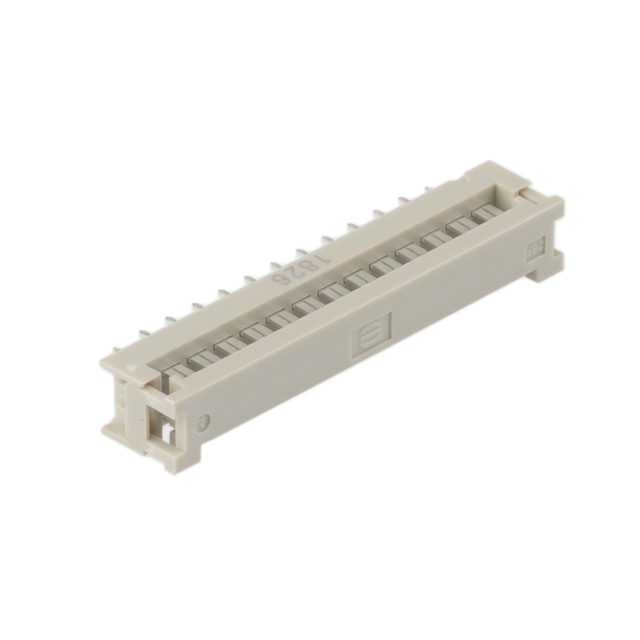

09181269422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Operating Temperature (Min) :

-55°C

REACH SVHC :

No SVHC

Number of Positions Loaded :

All

Termination :

Through Hole

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Insulator Color :

Gray

Contact Pattern :

RECTANGULAR

Feature :

Feed Through

HTS Code :

8536.69.40.40

Factory Lead Time :

7 Weeks

Contact Finish - Mating :

NOT SPECIFIED

Number of Rows :

2

Number of Conductors :

ONE

Mixed Contacts :

No

Total Number of Contacts :

26

Contact Resistance :

10MOhm

Number of Positions :

26

Contact Material :

Nickel

Cable Termination :

IDC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

2

Contact Style :

IDC

Row Spacing :

0.100 (2.54mm)

DIN Conformance :

No

Length - Termination :

0.13 inch

Board-Side Pitch :

0.100 2.54mm

IEC Conformance :

No

Pitch :

2.54mm

Body Length or Diameter :

1.509 inch

MIL Conformance :

No

Reference Standard :

UL

Operating Temperature (Max) :

105°C

Body Depth :

0.177 inch

Additional Feature :

LOW PROFILE

Option :

GENERAL PURPOSE

Series :

SEK

Reliability :

COMMERCIAL

Gender :

Receptacle

Packaging :

Bulk

Current Rating :

2A

Connector Type :

Ribbon Cable, DIP Header

Rated Current (Signal) :

2A

Mounting Type :

Through Hole, Kinked Pin

PCB Contact Pattern :

RECTANGULAR

Height :

5.5mm

Housing Material :

Thermoplastic

ECCN Code :

EAR99
