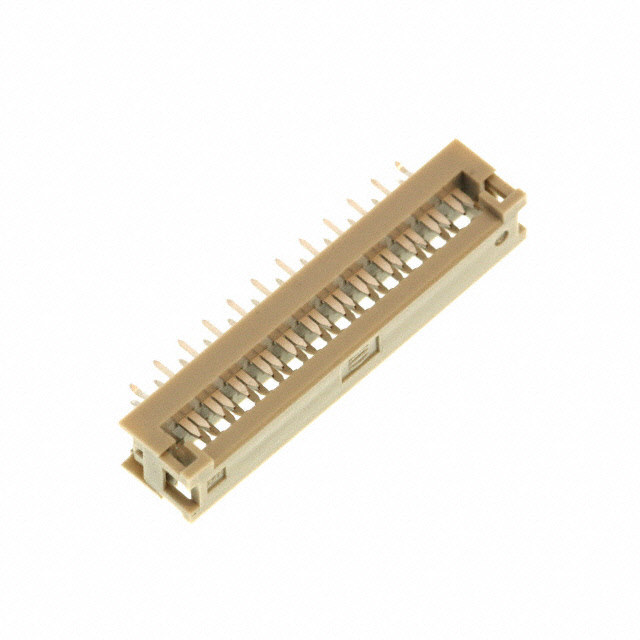

09181249422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Contact Finish - Mating :

NOT SPECIFIED

Body Depth :

0.177 inch

Rated Current (Signal) :

2A

ECCN Code :

EAR99

Row Spacing :

0.100 (2.54mm)

Gender :

Receptacle

Operating Temperature (Min) :

-55°C

Feature :

Feed Through

Contact Pattern :

RECTANGULAR

Contact Style :

IDC

Number of Positions :

24

Mixed Contacts :

No

MIL Conformance :

No

Filter Feature :

No

Factory Lead Time :

9 Weeks

Option :

GENERAL PURPOSE

REACH SVHC :

No SVHC

Series :

SEK

Polarization Key :

POLARIZED HOUSING

Insulator Color :

Gray

Additional Feature :

LOW PROFILE

HTS Code :

8536.69.40.40

Number Of PCB Rows :

2

Termination :

Through Hole

Board-Side Pitch :

0.100 2.54mm

Resistance :

2Ohm

Reference Standard :

UL

Reliability :

COMMERCIAL

DIN Conformance :

No

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Packaging :

Bulk

Operating Temperature (Max) :

105°C

Mount :

Through Hole

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Cable Termination :

IDC

Mounting Type :

Through Hole, Kinked Pin

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Height :

5.5mm

Length - Termination :

0.13 inch

Current Rating :

2A

Total Number of Contacts :

24

Pitch :

2.54mm

Number of Positions Loaded :

All

Connector Type :

Ribbon Cable, DIP Header

Body Length or Diameter :

1.409 inch

Contact Material :

Copper

PCB Contact Pattern :

RECTANGULAR
