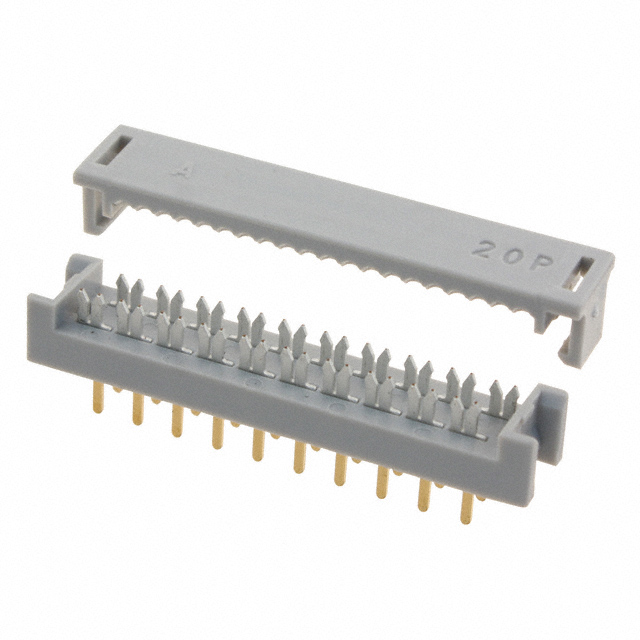

09181209622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Flammability Rating :

UL94 V-0

Material :

PBT, Resin, Thermoplastic

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

Row Spacing :

0.100 (2.54mm)

Depth :

6.1mm

Series :

SEK

Number of Positions :

20

Color :

Grey

Number Of PCB Rows :

2

Insulation Resistance :

10MOhm

Cable Termination :

IDC

Connector Type :

Ribbon Cable, DIP Header

Max Current Rating :

1A

Number of Rows :

2

Gender :

Male

Orientation :

Straight

Contact Style :

IDC

Board-Side Pitch :

0.100 2.54mm

Pitch :

2.54mm

Test Voltage :

1kV

REACH SVHC :

No SVHC

Total Number of Contacts :

20

Mount :

PCB, Through Hole

Rated Current (Signal) :

2A

Height :

5.5mm

PCB Thickness :

127mm

Termination :

Through Hole

Housing Material :

Polybutylene

Factory Lead Time :

4 Weeks

Packaging :

Tray

Polarization Key :

POLARIZED HOUSING

Current Rating :

1A

Mounting Type :

Through Hole

Feature :

Feed Through

Length :

30.7mm

Width :

30.74mm

Max Operating Temperature :

105°C

Lead Pitch :

2.54mm

RoHS Status :

ROHS3 Compliant

Lead Length :

3.3mm

Contact Resistance :

15mOhm

Min Operating Temperature :

-55°C

Hole Diameter :

1 mm

Contact Finish - Mating :

NOT SPECIFIED

Contact Material :

Nickel, Tin

Reference Standard :

UL

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Number of Conductors :

ONE
