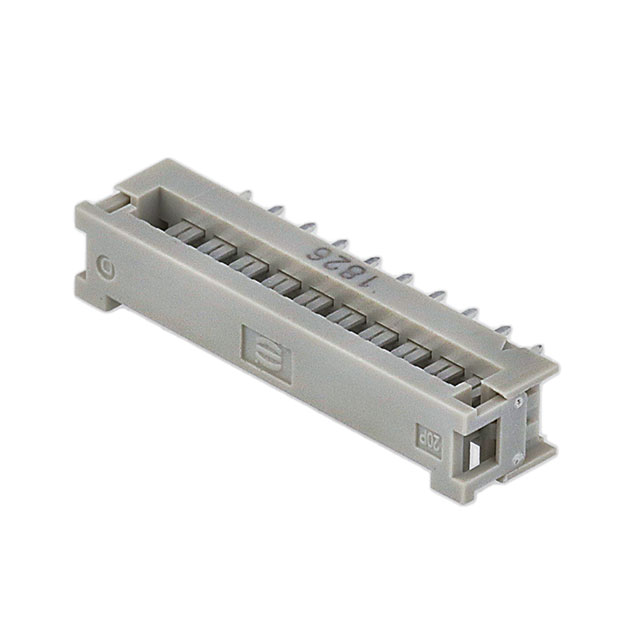

09181209422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Polarization Key :

POLARIZED HOUSING

Housing Material :

Thermoplastic

DIN Conformance :

No

REACH SVHC :

No SVHC

Feature :

Feed Through

Mixed Contacts :

No

MIL Conformance :

No

Series :

SEK

Termination :

Through Hole

Additional Feature :

LOW PROFILE

Body Depth :

0.177 inch

Factory Lead Time :

7 Weeks

Number of Positions :

20

Board-Side Pitch :

0.100 2.54mm

Operating Temperature (Max) :

105°C

Contact Resistance :

10MOhm

Option :

GENERAL PURPOSE

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Style :

IDC

Mount :

Through Hole

Number of Positions Loaded :

All

Row Spacing :

0.100 (2.54mm)

ECCN Code :

EAR99

Rated Current (Signal) :

2A

Reliability :

COMMERCIAL

Current Rating :

2A

Connector Type :

Ribbon Cable, DIP Header

Gender :

Receptacle

Insulator Color :

Gray

Number Of PCB Rows :

2

Cable Termination :

IDC

Pitch :

2.54mm

Number of Conductors :

ONE

Contact Pattern :

RECTANGULAR

Length - Termination :

0.13 inch

RoHS Status :

ROHS3 Compliant

Height :

5.5mm

Contact Finish - Mating :

NOT SPECIFIED

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Contact Material :

Nickel

Operating Temperature (Min) :

-55°C

Number of Rows :

2

Total Number of Contacts :

20

IEC Conformance :

No

Mounting Type :

Through Hole, Kinked Pin

Package / Case :

120

HTS Code :

8536.69.40.40

Packaging :

Bulk
