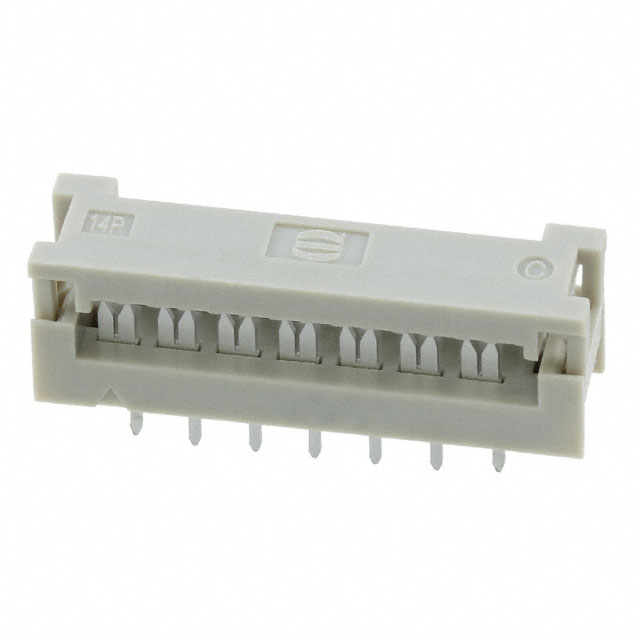

09181149422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Series :

SEK

Factory Lead Time :

7 Weeks

Feature :

Feed Through

Operating Temperature (Min) :

-55°C

Additional Feature :

LOW PROFILE

ECCN Code :

EAR99

Gender :

Receptacle

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Length - Termination :

0.13 inch

Cable Termination :

IDC

Pitch :

2.54mm

Rated Current (Signal) :

2A

Number of Positions :

14

Number of Conductors :

ONE

Packaging :

Bulk

Housing Material :

Thermoplastic

Body Length or Diameter :

0.909 inch

IEC Conformance :

No

Mounting Type :

Through Hole, Kinked Pin

Contact Style :

IDC

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Contact Material :

Nickel

Operating Temperature (Max) :

105°C

Insulator Color :

Gray

Option :

GENERAL PURPOSE

REACH SVHC :

No SVHC

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Board-Side Pitch :

0.100 2.54mm

Height :

5.5mm

Filter Feature :

No

Total Number of Contacts :

14

Contact Resistance :

10MOhm

Body Depth :

0.177 inch

HTS Code :

8536.69.40.40

Termination :

Through Hole

Mount :

Through Hole

Row Spacing :

0.100 (2.54mm)

DIN Conformance :

No

MIL Conformance :

No

Current Rating :

2A

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Ribbon Cable, DIP Header

Number of Positions Loaded :

All

Contact Finish - Mating :

NOT SPECIFIED
