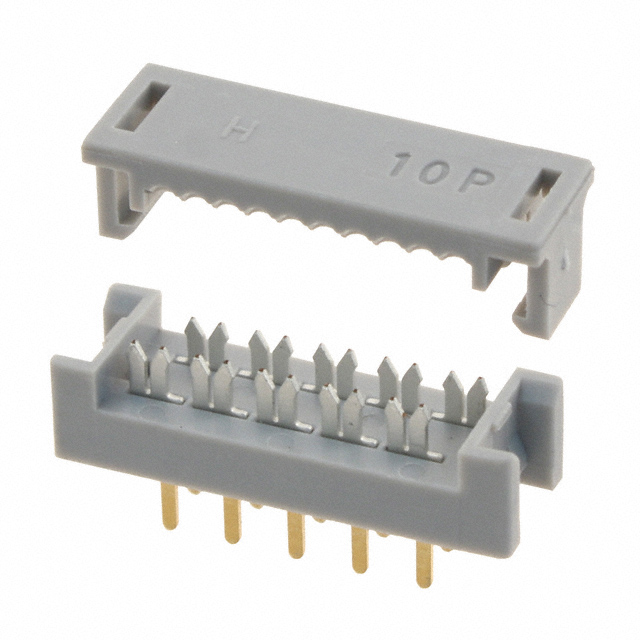

09181109622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Series :

SEK

Lead Length :

3.3mm

Min Operating Temperature :

-55°C

Factory Lead Time :

4 Weeks

Orientation :

Straight

Connector Type :

Ribbon Cable, DIP Header

Feature :

Feed Through

Rated Current (Signal) :

2A

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Through Hole

Number of Conductors :

ONE

Polarization Key :

POLARIZED HOUSING

Body/Shell Style :

Receptacle

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Depth :

6.1mm

Material :

PBT, Resin, Thermoplastic

Width :

18mm

Board-Side Pitch :

0.100 2.54mm

PCB Thickness :

127mm

Hole Diameter :

1 mm

Number of Rows :

2

Color :

Grey

Reliability :

COMMERCIAL

Contact Resistance :

15mOhm

Contact Pattern :

RECTANGULAR

Pitch :

2.54mm

Number of Positions :

10

Packaging :

Tray

Length :

18mm

Max Operating Temperature :

105°C

Current Rating :

1A

Total Number of Contacts :

10

Test Voltage :

1kV

Housing Material :

Polybutylene

Gender :

Male

Lead Pitch :

2.54mm

Contact Material :

Nickel, Tin

Number of Positions Loaded :

All

Additional Feature :

LOW PROFILE

Number Of PCB Rows :

2

Mixed Contacts :

No

Row Spacing :

0.100 (2.54mm)

Height :

5.5mm

Contact Style :

IDC

Max Current Rating :

1A

MIL Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Flammability Rating :

UL94 V-0

Cable Termination :

IDC

Filter Feature :

No

DIN Conformance :

No

Mounting Type :

Through Hole

REACH SVHC :

No SVHC

IEC Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Mount :

PCB, Through Hole

Insulation Resistance :

10MOhm
