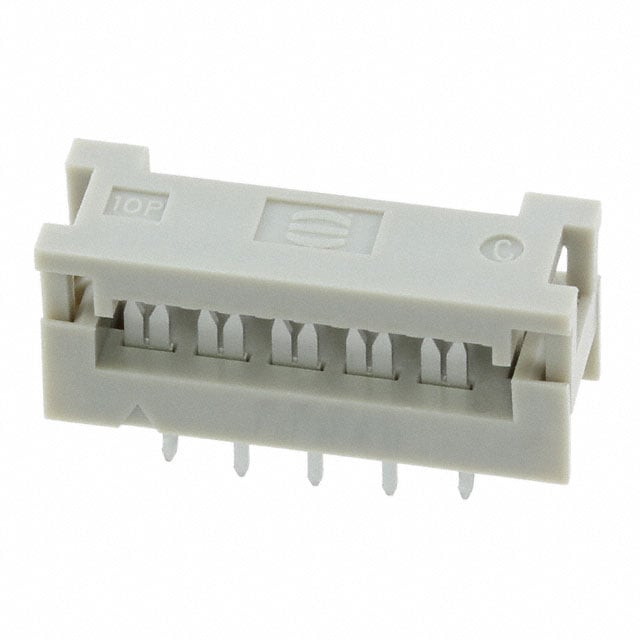

09181109422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Board-Side Pitch :

0.100 2.54mm

Cable Termination :

IDC

Additional Feature :

LOW PROFILE

DIN Conformance :

No

Mounting Type :

Through Hole, Kinked Pin

PCB Contact Pattern :

RECTANGULAR

Contact Style :

IDC

Mixed Contacts :

No

Number of Positions Loaded :

All

Filter Feature :

No

Reference Standard :

UL

REACH SVHC :

No SVHC

Mount :

Through Hole

Factory Lead Time :

7 Weeks

Option :

GENERAL PURPOSE

Total Number of Contacts :

10

MIL Conformance :

No

Body Depth :

0.177 inch

Row Spacing :

0.100 (2.54mm)

Body Length or Diameter :

0.709 inch

Number of Rows :

2

Contact Finish - Mating :

NOT SPECIFIED

IEC Conformance :

No

Feature :

Feed Through

Housing Material :

Thermoplastic

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Series :

SEK

Number of Conductors :

ONE

Packaging :

Bulk

Current Rating :

2A

Length - Termination :

0.13 inch

Polarization Key :

POLARIZED HOUSING

Pitch :

2.54mm

Number of Positions :

10

Connector Type :

Ribbon Cable, DIP Header

Contact Material :

Nickel

Termination :

Through Hole

Insulator Color :

Gray

Gender :

Receptacle

Height :

5.5mm

Rated Current (Signal) :

2A

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Pattern :

RECTANGULAR
