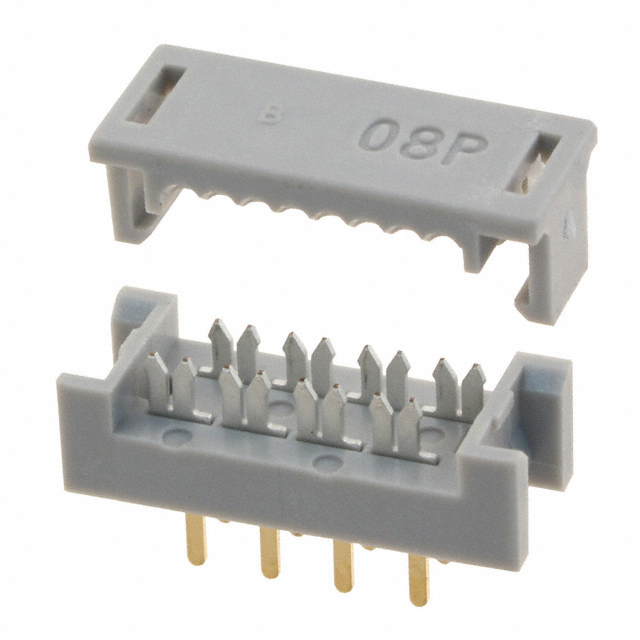

09181089622
- Mfr.Part #
- 09181089622
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN DIP HDR IDC 8POS VERT
- Stock
- 122
- In Stock :
- 122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Board In, Direct Wire to Board
- Insulator Color :
- Gray
- PCB Contact Pattern :
- RECTANGULAR
- Min Operating Temperature :
- -55°C
- Rated Current (Signal) :
- 2A
- Height :
- 5.5mm
- Length :
- 15.46mm
- Row Spacing :
- 0.100 (2.54mm)
- Cable Termination :
- IDC
- Number of Rows :
- 2
- Additional Feature :
- LOW PROFILE
- Current Rating :
- 2A
- Series :
- SEK
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Max Operating Temperature :
- 105°C
- Polarization Key :
- POLARIZED HOUSING
- Pitch :
- 2.54mm
- Gender :
- Male
- Mixed Contacts :
- No
- Number of Positions :
- 8
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polybutylene
- Reference Standard :
- UL
- Max Current Rating :
- 1A
- Reliability :
- COMMERCIAL
- Termination :
- IDT
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Contact Finish - Mating :
- NOT SPECIFIED
- Mounting Type :
- Through Hole
- Board-Side Pitch :
- 0.100 2.54mm
- Number of Conductors :
- ONE
- Factory Lead Time :
- 7 Weeks
- Depth :
- 6.1mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number Of PCB Rows :
- 2
- Total Number of Contacts :
- 8
- Contact Style :
- IDC
- MIL Conformance :
- No
- DIN Conformance :
- No
- Contact Pattern :
- RECTANGULAR
- Connector Type :
- Ribbon Cable, DIP Header
- Feature :
- Feed Through
- Mount :
- Cable, Through Hole
- Filter Feature :
- No
- Number of Positions Loaded :
- All
- Contact Resistance :
- 35mOhm
- Datasheets
- 09181089622
