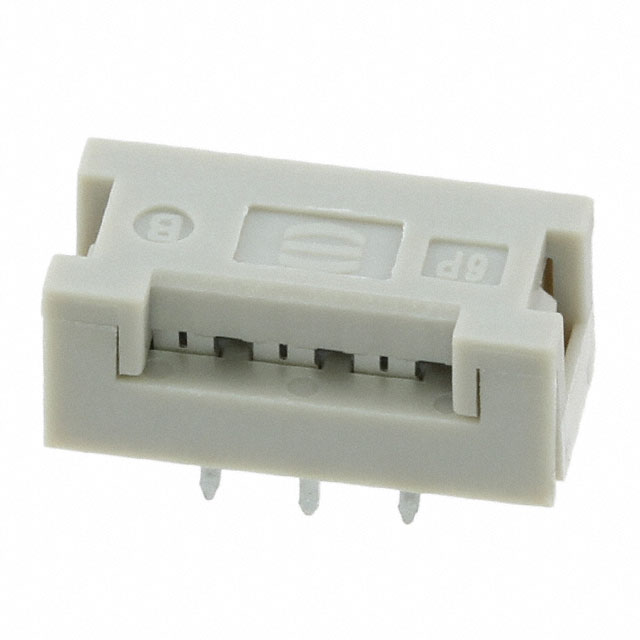

09181069422

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Current Rating :

2A

Height :

5.5mm

Number of Positions Loaded :

All

Mount :

Through Hole

Contact Resistance :

10MOhm

Reference Standard :

UL

Total Number of Contacts :

6

Housing Material :

Thermoplastic

Body Depth :

0.177 inch

Feature :

Feed Through

Filter Feature :

No

Connector Type :

Ribbon Cable, DIP Header

Pitch :

2.54mm

Termination :

Through Hole

Operating Temperature (Max) :

105°C

Mixed Contacts :

No

Contact Finish - Mating :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Gender :

Receptacle

Mounting Type :

Through Hole, Kinked Pin

Insulator Color :

Gray

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

Cable Termination :

IDC

Contact Style :

IDC

Factory Lead Time :

7 Weeks

Number of Rows :

2

REACH SVHC :

No SVHC

Contact Material :

Nickel

Board-Side Pitch :

0.100 2.54mm

Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Row Spacing :

0.100 (2.54mm)

Length - Termination :

0.13 inch

Body Length or Diameter :

0.509 inch

Additional Feature :

LOW PROFILE

Rated Current (Signal) :

2A

Series :

SEK

Number Of PCB Rows :

2

MIL Conformance :

No

ECCN Code :

EAR99

Reliability :

COMMERCIAL

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Packaging :

Bulk

Operating Temperature (Min) :

-55°C

Option :

GENERAL PURPOSE

Number of Positions :

6
