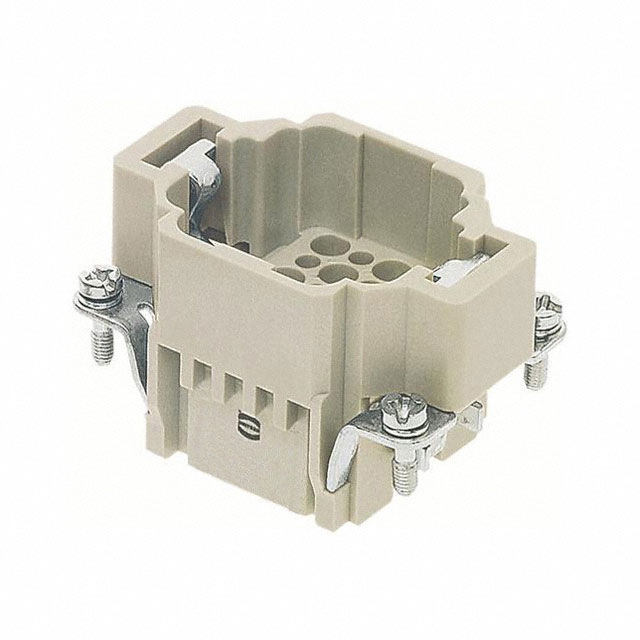

09160243001

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

RoHS Status :

ROHS3 Compliant

Depth :

33.6mm

Factory Lead Time :

4 Weeks

Housing Material :

Polycarbonate (PC)

Number of Rows :

6

Durability :

500 Cycles

Number of Pins :

24

Current Rating :

10A

Insulation Resistance :

10GOhm

Mounting Type :

CABLE

Termination Style :

Crimp

Mixed Contacts :

yes

Voltage - Rated DC :

250V

Option :

GENERAL PURPOSE

Packaging :

Bulk

Max Current Rating :

10A

Material :

Thermoplastic

Voltage - Rated AC :

250V

Additional Feature :

ROHS COMPL. and M3X10 SCREWS

Body/Shell Style :

Receptacle

IEC Conformance :

No

Wire Gauge (Min) :

26 AWG

Contact Finish - Mating :

NOT SPECIFIED

Length :

51mm

MIL Conformance :

No

Mounting Option 1 :

GUIDE SLOT

Dielectric Withstanding Voltage :

4000VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Option 2 :

LOCKING

Ratings :

IP65

Contact Material :

Copper

Contact Type :

Han® D

Contact Resistance :

3mOhm

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Working Voltage :

250V

Test Voltage :

2kV

Color :

Gray

Reference Standard :

UL, CSA

Number of Positions :

24+Ground

DIN Conformance :

No

Size :

6B

Operating Temperature :

-40°C~125°C

Number of Conductors :

ONE

Connector Type :

Insert without Contacts

Pbfree Code :

yes

Orientation :

Straight

Body Breadth :

1.339 inch

Series :

Han® DD

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Contact Plating :

Silver

Test Current :

10A

Wire Gauge (Max) :

14 AWG

Material Flammability Rating :

UL94 V-0

Board Mounting Option :

Mounting Flange

Total Number of Contacts :

24

Gender :

Male
