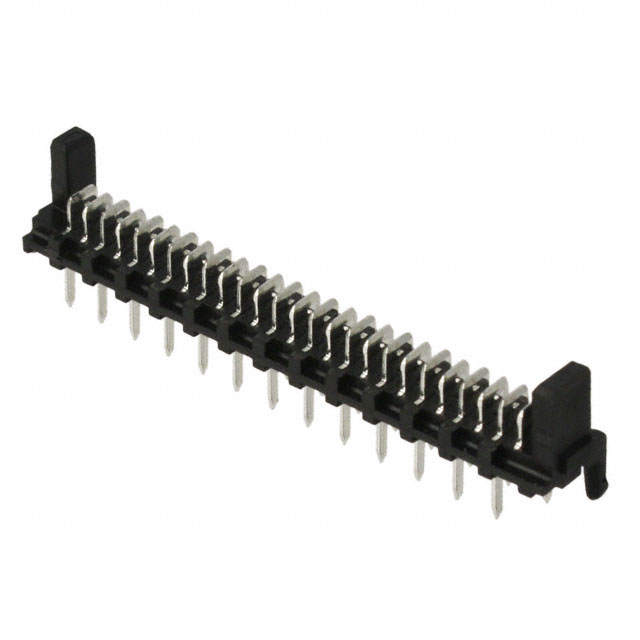

0903250026
Or copy the link below:
- Mfr.Part #
- 0903250026
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 26POS 1.27MM
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.050 1.27mm
- Style :
- Board to Cable/Wire
- Number of Rows :
- 1
- IEC Conformance :
- No
- Number of Positions :
- 26
- Filter Feature :
- No
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.130 3.30mm
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Applications :
- Automotive, General Purpose, Industrial, Medical
- DIN Conformance :
- No
- Contact Type :
- Male Blade
- Series :
- Picoflex PF-50 90325
- Contact Finish - Mating :
- Tin
- Insulation Height :
- 0.252 6.40mm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Feature :
- Board Lock
- Contact Material :
- Brass
- Operating Temperature :
- -40°C~105°C
- Additional Feature :
- LOW PROFILE, POLARIZED
- Connector Type :
- Header
- Mixed Contacts :
- No
- Insulation Color :
- Black
- Factory Lead Time :
- 31 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Push-Pull
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 2 Wall
- Packaging :
- Bulk
- Contact Shape :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Voltage - Rated :
- 250V
- Current Rating (Amps) :
- 1.2A
- Datasheets
- 0903250026
0903250026 Documents
Picoflex PF-50 90325 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 26-Position Board to Cable/Wire 0.252 6.40mm Height
0903250026 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Picoflex PF-50 90325 Series.To name a few, there is also LOW PROFILE, POLARIZED.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical.There are a number of advantages to its Board Lock feature.As a result, the device runs at -40°C~105°C Operating Temperature.
0903250026 Features
Picoflex PF-50 90325 series
0903250026 Applications
There are a lot of Molex
0903250026 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
