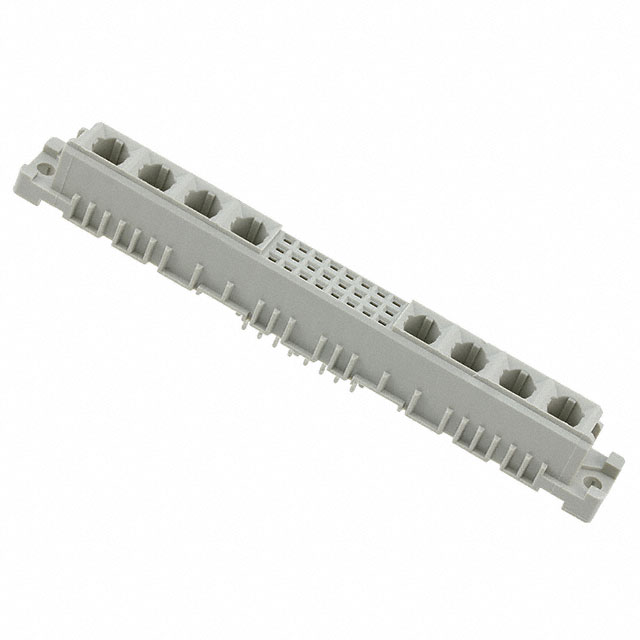

09032246804

Manufacturer :

HARTING

Product Category :

DIN 41612

Number of Positions Loaded :

24

DIN Conformance :

yes

REACH SVHC :

No SVHC

Style :

M

JESD-609 Code :

e4

IEC Conformance :

No

Number of Positions :

32 (24 + 8 Coax or Power)

Connector Type :

Receptacle, Female Sockets

Current Rating :

2A

ECCN Code :

EAR99

Operating Temperature :

-55°C~125°C

Housing Material :

PBT

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Number of Contacts :

32

Contact Finish :

Gold or Gold-Palladium

Mounting Type :

Through Hole

Number of Rows :

3

Number of Conductors :

ONE

Body Depth :

0.496 inch

Mount :

Through Hole

Contact Plating :

Gold

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Reference Standard :

UL

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

Copper

Series :

DIN 41612

Packaging :

Bulk

Option :

GENERAL PURPOSE

Factory Lead Time :

8 Weeks

Mixed Contacts :

yes

Gender :

Receptacle

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Level, Class :

1

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Pitch :

0.100 2.54mm
