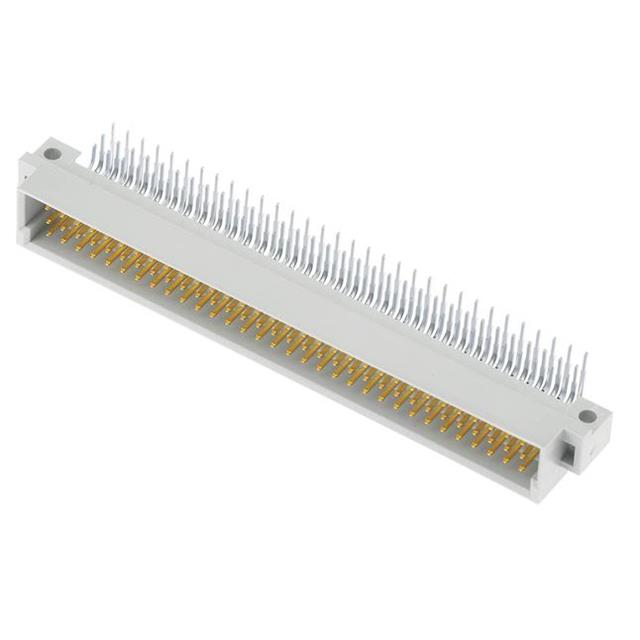

09031646921222

Manufacturer :

HARTING

Product Category :

DIN 41612

Mixed Contacts :

No

Gender :

Male

Rated Current (Signal) :

2A

Contact Finish :

Gold-Palladium

Number of Rows :

3

Number Of PCB Rows :

2

DIN Conformance :

yes

Housing Material :

Thermoplastic

Number of Positions :

96

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

ECCN Code :

EAR99

Series :

DIN 41612

Insulation Resistance :

100000000000Ohm

Level, Class :

2

PCB Contact Row Spacing :

5.08 mm

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions Loaded :

64

Package / Case :

612

Reference Standard :

UL

Termination :

Solder

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

7 Weeks

Total Number of Contacts :

64

Orientation :

RIGHT ANGLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole, Right Angle

Name of Rows Loaded :

A,C

Operating Temperature :

-55°C~125°C

Connector Type :

Header, Male Pins

Current Rating :

2A

Option :

GENERAL PURPOSE

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Style :

C

Pitch :

0.100 2.54mm
