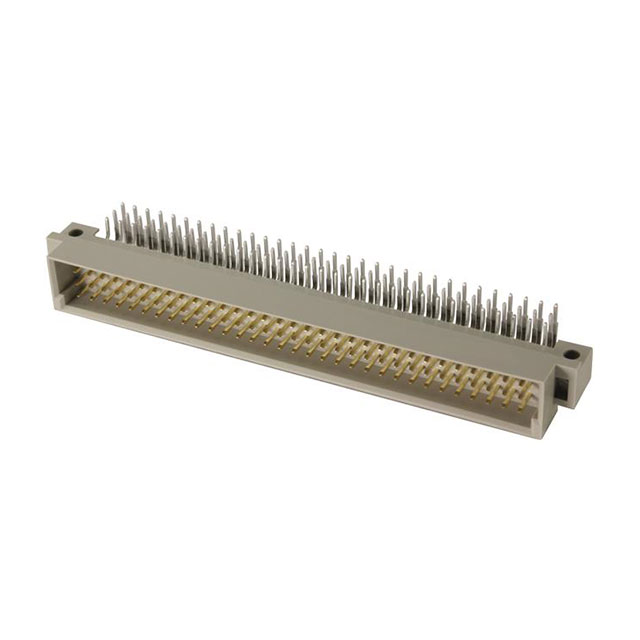

09031642951

Manufacturer :

HARTING

Product Category :

DIN 41612

Option :

GENERAL PURPOSE

Level, Class :

1

Withdrawl Force-Min :

.9452 N

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Pbfree Code :

yes

ECCN Code :

EAR99

Mounting Type :

Through Hole, Right Angle

Termination :

Solder

Current Rating (Amps) :

2A

Number Of PCB Rows :

3

Pitch :

0.100 2.54mm

JESD-609 Code :

e4

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

64

Filter Feature :

No

Mixed Contacts :

No

Insertion Force-Max :

.9452 N

Style :

C

Polarization Key :

POLARIZED HOUSING

Packaging :

Bulk

Number of Positions :

96

Factory Lead Time :

7 Weeks

Connector Type :

Header, Male Pins

PCB Contact Row Spacing :

2.54 mm

DIN Conformance :

yes

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

DIN 41612

Contact Finish :

Gold-Palladium

Number of Rows :

3

Name of Rows Loaded :

A,C

Total Number of Contacts :

64

UL Flammability Code :

94V-0
