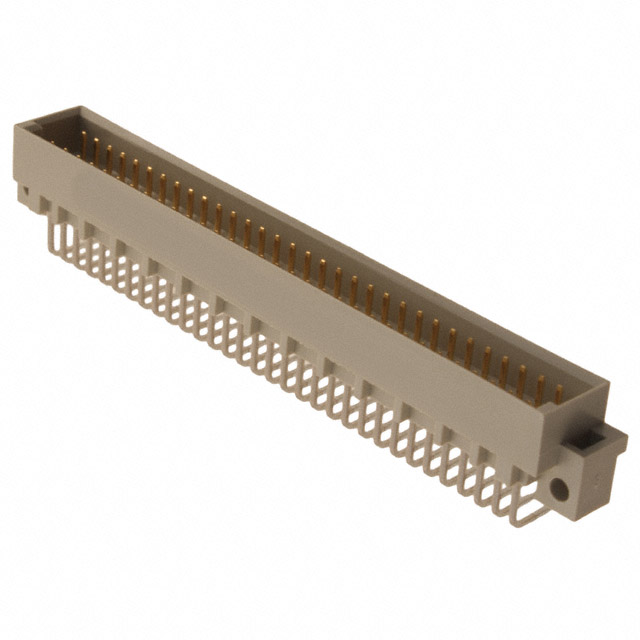

09031642921

Manufacturer :

HARTING

Product Category :

DIN 41612

RoHS Status :

ROHS3 Compliant

PCB Contact Row Spacing :

2.54 mm

Packaging :

Bulk

Depth :

17.72mm

Length :

94mm

Withdrawl Force-Min :

.9452 N

Name of Rows Loaded :

A,C

DIN Conformance :

yes

Max Current Rating :

2A

Mounting Type :

Through Hole, Right Angle

Rated Current (Signal) :

2A

Mount :

Through Hole

Orientation :

RIGHT ANGLE

Contact Plating :

Gold, Nickel

Level, Class :

1

Style :

C

Termination :

Solder

Number Of PCB Rows :

3

Number of Positions Loaded :

64

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

JESD-609 Code :

e4

Flammability Rating :

UL94 V-0

Connector Type :

Header, Male Pins

IEC Conformance :

No

ECCN Code :

EAR99

Number of Positions :

96

Approval Agency :

IEC

Current Rating :

2A

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Insertion Force-Max :

.9452 N

Gender :

Male

MIL Conformance :

No

Option :

GENERAL PURPOSE

Total Number of Contacts :

64

Series :

DIN 41612

Polarization Key :

POLARIZED HOUSING

Number of Rows :

3

Length - Tail :

3mm

Mixed Contacts :

No

Filter Feature :

No

Pitch :

0.100 2.54mm

Material - Insulation :

Thermoplastic, Glass Filled
