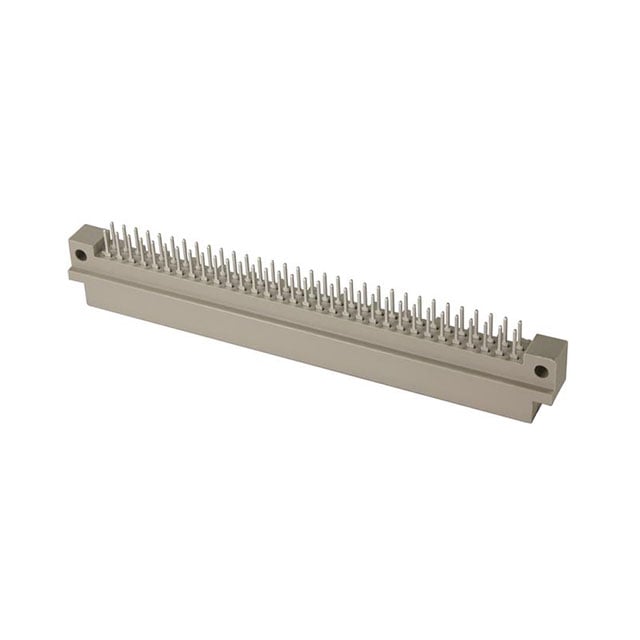

09021326932

Manufacturer :

HARTING

Product Category :

DIN 41612

Style :

B

Contact Finish :

Gold-Palladium

Flammability Rating :

UL94 V-0

Reference Standard :

UL, CSA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.40

Rated Current (Signal) :

2A

Mating Contact Row Spacing :

0.1 inch

UL Flammability Code :

94V-0

Total Number of Contacts :

32

Mount :

Through Hole

Number of Rows :

2

Insulation Resistance :

1000000000000Ohm

Contact Finish Thickness :

Flash

Filter Feature :

No

Durability :

400 Cycles

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING

Dielectric Withstanding Voltage :

1000VAC V

Number Of PCB Rows :

2

Contact Material :

NOT SPECIFIED

Factory Lead Time :

7 Weeks

Number of Positions Loaded :

32

Packaging :

Bulk

Mixed Contacts :

No

Connector Type :

Header, Male Pins

MIL Conformance :

No

Pitch :

0.100 2.54mm

Length - Termination :

0.118 inch

Number of Positions :

64

Termination :

Solder

Pbfree Code :

yes

Operating Temperature (Min) :

-65°C

Contact Plating :

Gold

Mounting Type :

Through Hole

Housing Material :

Thermoplastic

Contact Resistance :

15mOhm

Name of Rows Loaded :

A

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Body Length or Diameter :

3.701 inch

JESD-609 Code :

e4

Orientation :

Straight

IEC Conformance :

No

Reliability :

COMMERCIAL

Body Breadth :

0.339 inch

DIN Conformance :

yes
