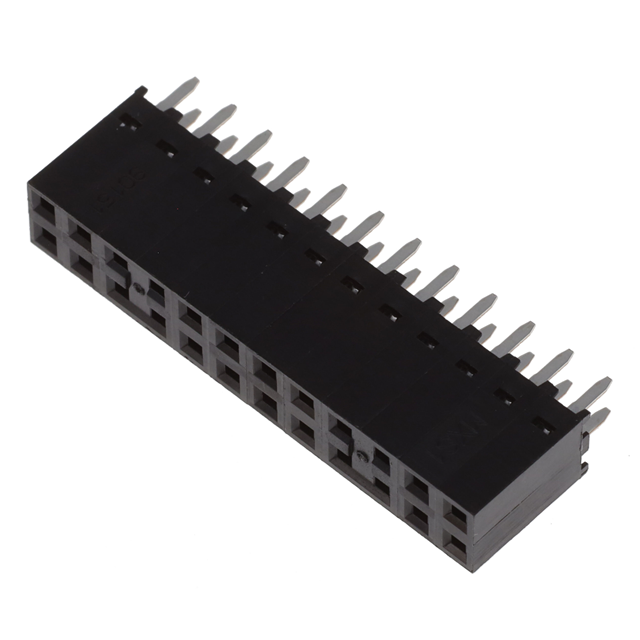

0901512124
Or copy the link below:
- Mfr.Part #
- 0901512124
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 24POS 0.1 TIN PCB
- Stock
- 1,428
- In Stock ：
- 1,428
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Pitch - Mating :
- 0.100 2.54mm
- Voltage - Rated :
- 350V
- Packaging :
- Bulk
- Contact Length - Post :
- 0.114 2.90mm
- Series :
- C-Grid III 90151
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Factory Lead Time :
- 14 Weeks
- Number of Positions :
- 24
- Fastening Type :
- Push-Pull
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- 40.0μin 1.02μm
- Contact Shape :
- Square
- Insulation Material :
- Polyester, Glass Filled
- Connector Type :
- Receptacle
- Termination :
- Solder
- Insulation Height :
- 0.335 8.51mm
- Current Rating (Amps) :
- 3A
- Operating Temperature :
- -55°C~105°C
- Contact Finish Thickness - Mating :
- 40.0μin 1.02μm
- Contact Type :
- Female Socket
- Style :
- Board to Board
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Datasheets
- 0901512124
2 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Tin Polyester, Glass Filled 24 Positions Female Socket
0901512124 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the C-Grid III 90151 Series.The device may be used for the following applications: Automotive, General Purpose, Lighting, Medical, Telecommunications.It operates at an operating temperature of -55°C~105°C.
0901512124 Features
C-Grid III 90151 series
0901512124 Applications
There are a lot of Molex
0901512124 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
