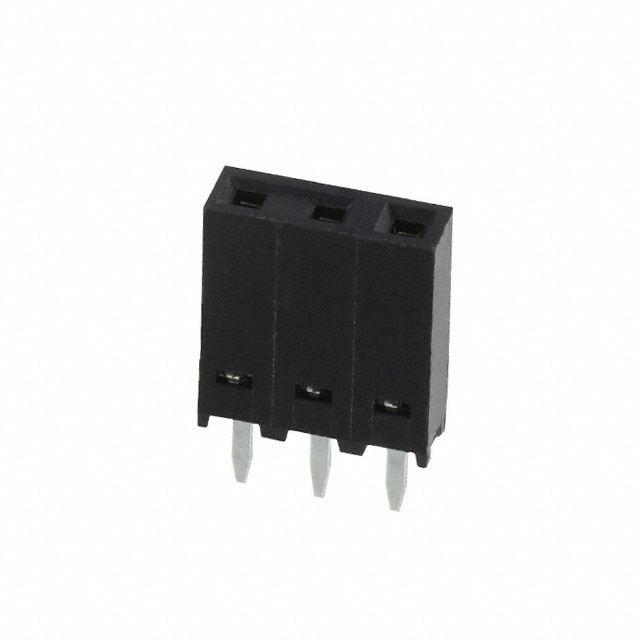

0901471103
Or copy the link below:
- Mfr.Part #
- 0901471103
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS 0.1 TIN PCB
- Stock
- 1,159
- In Stock ：
- 1,159
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Positions :
- 3
- MIL Conformance :
- No
- Contact Shape :
- Square
- Pbfree Code :
- yes
- Packaging :
- Tube
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Insulation Material :
- Polyester, Glass Filled
- Voltage - Rated :
- 350V
- Current Rating (Amps) :
- 3A
- Factory Lead Time :
- 14 Weeks
- UL Flammability Code :
- 94V-0
- Insulation Color :
- Black
- Pitch - Mating :
- 0.100 2.54mm
- Terminal Pitch :
- 2.54mm
- Connector Type :
- Receptacle
- Operating Temperature :
- -55°C~105°C
- Termination :
- Solder
- DIN Conformance :
- No
- Insulation Height :
- 0.335 8.51mm
- Contact Finish Thickness - Mating :
- 40.0μin 1.02μm
- Contact Length - Post :
- 0.114 2.90mm
- JESD-609 Code :
- e3
- Contact Type :
- Female Socket
- Number of Positions Loaded :
- All
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 40.0μin 1.02μm
- Series :
- C-Grid 90147
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Style :
- Board to Board
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Filter Feature :
- No
- Datasheets
- 0901471103
0901471103 Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin Polyester, Glass Filled 3 Positions Female Socket
0901471103 Overview
Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the C-Grid 90147 Series.A possible application for the device is Automotive, General Purpose, Lighting, Medical, Telecommunications.In this case, the device operates at -55°C~105°C Operating Temperature.
0901471103 Features
C-Grid 90147 series
0901471103 Applications
There are a lot of Molex
0901471103 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
