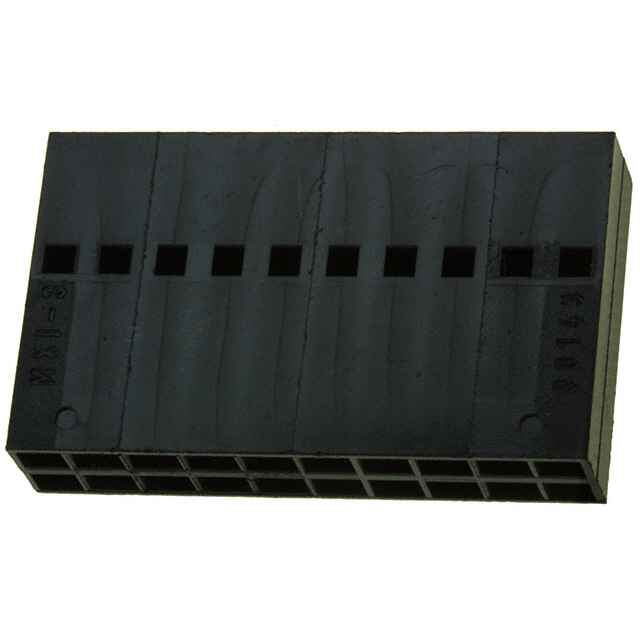

    Images are for reference only.

    Delivery：

    Payment：

    0901430020

    Share

    Or copy the link below:

    Mfr.Part #
    0901430020
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN RCPT HSG 20POS 2.54MM
    Stock
    11,002
    In Stock ：
    11,002

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Rectangular Connector Housings
    Contact Termination :
    Crimp
    Total Number of Contacts :
    20
    Contact Material :
    NOT SPECIFIED
    Row Spacing :
    0.100 (2.54mm)
    Additional Feature :
    Stackable
    MIL Conformance :
    No
    Factory Lead Time :
    11 Weeks
    IEC Conformance :
    No
    Number of Positions :
    20
    Contact Type :
    Female Socket
    Pbfree Code :
    yes
    Mating Information :
    MULTIPLE MATING PARTS AVAILABLE
    Contact Finish - Mating :
    NOT SPECIFIED
    Note :
    Contacts Not Included
    Number of Rows :
    2
    Option :
    GENERAL PURPOSE
    Filter Feature :
    No
    Color :
    Black
    Mixed Contacts :
    No
    Packaging :
    Bulk
    Mounting Type :
    Free Hanging (In-Line)
    DIN Conformance :
    No
    Series :
    C-Grid III 90143
    Pitch :
    0.100 2.54mm
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    RoHS Status :
    ROHS3 Compliant
    Connector Type :
    Receptacle
    Datasheets
    0901430020
    Introducing Rectangular Connector Housings Molex 0901430020 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), 0901430020 pinout, 0901430020 datasheet PDF, 0901430020 amp .Beyond Rectangular Connector Housings Molex 0901430020 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0901430020


    2 Rows Receptacle Bulk Black 20 Positions Free Hanging (In-Line) Female Socket Crimp C-Grid III 90143

    0901430020 Overview


    Packaging for this item is Receptacle.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the C-Grid III 90143 Series.Moreover, there are a number of other features, including STACKABLE, to name just a few.

    0901430020 Features


    C-Grid III 90143 series


    0901430020 Applications


    There are a lot of Molex
    0901430020 Rectangular Connectors applications.


    • Transportation
    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
