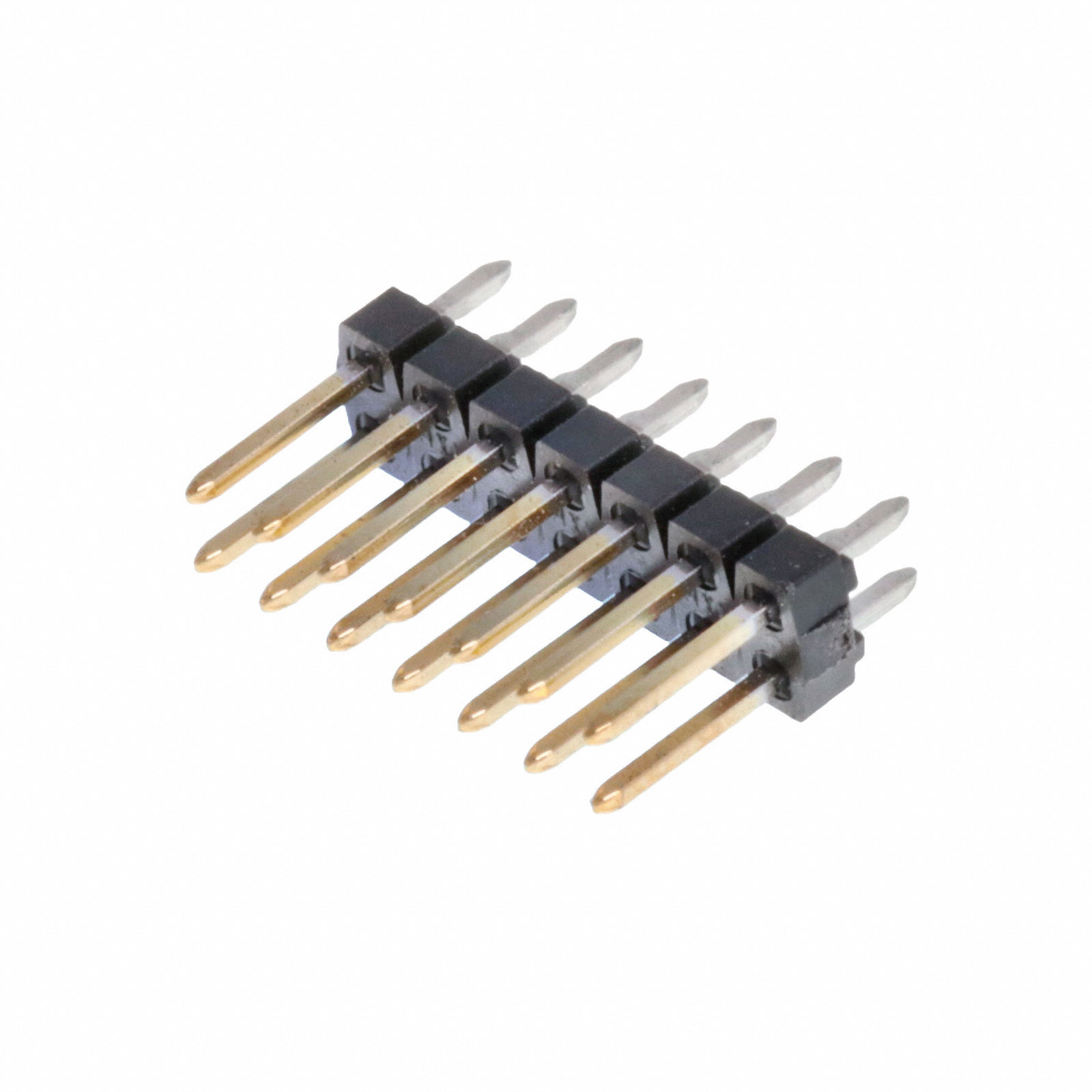

0901310767
Or copy the link below:
- Mfr.Part #
- 0901310767
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 4,918
- In Stock ：
- 4,918
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.114 2.90mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Shape :
- Square
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Factory Lead Time :
- 10 Weeks
- Pbfree Code :
- yes
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Shrouding :
- Unshrouded
- Overall Contact Length :
- 0.478 12.15mm
- Connector Type :
- Header, Breakaway
- Applications :
- Automotive, General Purpose
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Cable/Wire
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Number of Positions :
- 14
- Contact Finish - Post :
- Tin
- Contact Length - Mating :
- 0.266 6.75mm
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Contact Material :
- Brass
- Insulation Height :
- 0.098 2.50mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Series :
- C-Grid III 90131
- Datasheets
- 0901310767
C-Grid III 90131 Series 2-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polyester, Glass Filled 14-Position Board to Cable/Wire 0.098 2.50mm Height
0901310767 Overview
Packaging is Header, Breakaway.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the C-Grid III 90131 Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose.
0901310767 Features
C-Grid III 90131 series
0901310767 Applications
There are a lot of Molex
0901310767 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
