Mfr.Part #
09-48-1144
Manufacturer
Molex
Package / Case
Datasheet
Download
Description

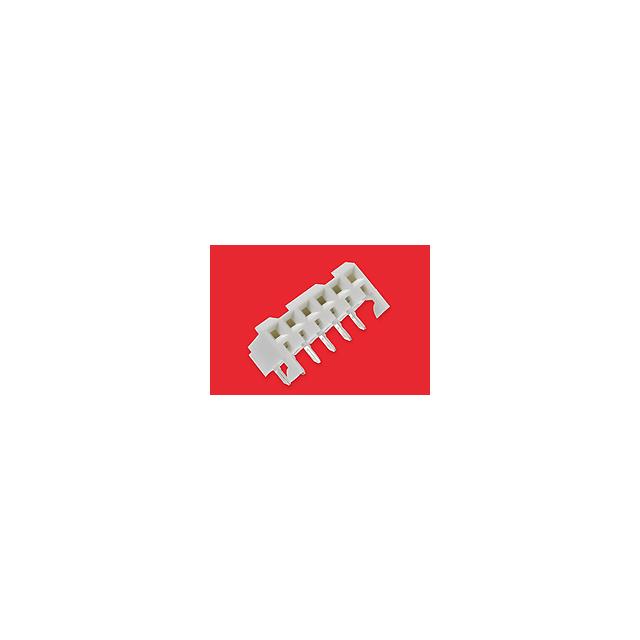

KK 396 PC BOARD CONNECTOR, RIGHT
Stock
694
In Stock :
694

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Headers, Receptacles, Female Sockets
Option :
GENERAL PURPOSE
Total Number of Contacts :
14
Product Depth (mm) :
11.4(mm)
Contact Style :
SQ PIN-SKT
Product Category :
Headers and Wire Housings
Pitch :
3.96 mm
Subcategory :
Headers and Wire Housings
DIN Conformance :
No
Mixed Contacts :
No
Gender :
RCP
Termination Post Length :
3.68 mm
Contact Arrangement :
S0P14
Body Orientation :
RIGHT ANGLE
Reliability :
COMMERCIAL
Current Rating (Max) :
5/Contact(A)
Termination Style :
Solder Pin
Voltage Rating :
250 V
Packaging :
Tray
ECCN Code :
EAR99
Mounting Style :
Through Hole
Insulator Color :
Natural
Terminal Length :
0.145 inch
Withdrawl Force-Min :
1.7792 N
Body Breadth :
0.25 inch
Accessory Type :
-
Mounting Type :
BOARD
Reference Standard :
UL
Brand :
Molex
Manufacturer :
Molex
Flammability Rating :
UL 94 V-0
Country of Origin :
US
Manufacturer Lifecycle Status :
ACTIVE (Last Updated: 2 years ago)
Number of Positions :
14
Housing Color :
White
Number of Circuits :
13
Plating Thickness :
60u inch
JESD-609 Code :
e3
Terminal Pitch :
3.96 mm
Min Operating Temperature :
0 °C
Mount :
Through Hole
Termination Type :
Solder
Number of Contacts :
14
Insertion Force-Max :
10.6752 N
Flammability :
94V-0
Orientation :
RIGHT ANGLE
Contact Finish Termination :
Tin (Sn)
Housing Material :
Polyester
Lifecycle Status :
Production (Last Updated: 2 years ago)
Max Operating Temperature :
75 °C
Current Rating :
5 A
UL Flammability Code :
94V-0
Type :
Socket Strip
Package :
Box
Product Height (mm) :
7.82(mm)
Contact Gender :
Socket (Female)
Maximum Operating Temperature :
+ 105 C
Filter Feature :
No
Application :
Board-to-Board
Reach Compliance Code :
Compliant
MIL Conformance :
No
Insulation Resistance :
1000000000 Ω
Mounting Angle :
RIGHT ANGLE
Pbfree Code :
yes
IEC Conformance :
No
Operating Temp Range :
-40C to 105C
RoHS :
Compliant
Contact Material :
Bronze
Contact Resistance Max :
6(mohm)
Additional Feature :
KK, STACKED
Tradename :
KK
Product Length (mm) :
55.37(mm)
Number of Rows :
1
Plating :
Tin
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Product Status :
Active
Connector Type :
BOARD CONNECTOR
HTS Code :
8536.69.40.40
Contact Type :
-
Durability :
25 Cycles
Series :
41815
Mounting Option 1 :
LOCKING
Product Type :
Headers and Wire Housings
Number of Contact Rows :
1
Body Depth :
0.45 inch
Contact Plating :
Tin
Contact Resistance :
6 mΩ
Voltage Rating Max :
250V
Pitch (mm) :
3.96(mm)
Minimum Operating Temperature :
- 40 C
Termination :
Solder
Product :
Headers
Body/Shell Style :
PLUG
Termination Method :
Solder
