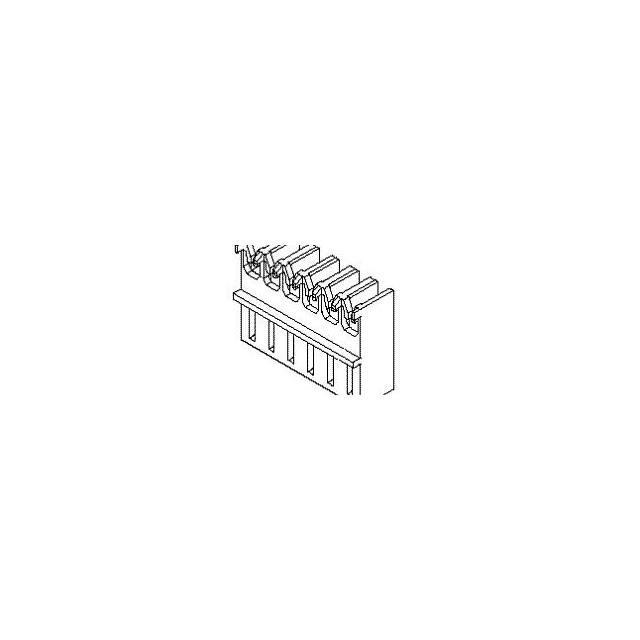

09-07-1028

Manufacturer :

Molex

Product Category :

Unclassified

Termination Method :

IDT

Filter Feature :

No

Reliability :

COMMERCIAL

DIN Conformance :

No

Termination Type :

IDC

Packaging :

Bag

Product Depth (mm) :

9.4(mm)

Insulator Color :

Red

Reference Standard :

UL, CSA

ECCN Code :

EAR99

Contact Resistance Max :

10(mohm)

Contact Design :

PREASSEM CONN

Rated Current (Signal) :

5 A

MIL Conformance :

No

Mounting Type :

CABLE

Insertion Force-Max :

8.896 N

Housing Material :

Nylon 6/6

Body Depth :

0.685 inch

Withdrawl Force-Min :

2.224 N

UL Flammability Code :

94V-2

Gender :

F

Product Status :

Active

Mating Contact Pitch :

0.156 inch

Body Orientation :

RIGHT ANGLE

Product Length (mm) :

8.38(mm)

Contact Finish Termination :

TIN (200) OVER COPPER (100)

Option :

GENERAL PURPOSE

HTS Code :

8536.69.40.40

Additional Feature :

POLARIZED

Package :

Box

Number of Contacts :

2(POS)

Pitch (mm) :

3.96(mm)

Type :

IDC Connector

Reach Compliance Code :

Compliant

Contact Plating :

TIN OVER COPPER

Contact Resistance :

20 mΩ

Housing Color :

Natural

Subcategory :

Headers and Edge Type Connectors

Contact Style :

BELLOWED TYPE

Manufacturer :

Molex

Voltage Rating Max :

250V

JESD-609 Code :

e3

IEC Conformance :

No

Total Number of Contacts :

2

Insulation Resistance :

200000000000 Ω

Product Height (mm) :

17.4(mm)

Durability :

25 Cycles

Number of Contact Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Material :

Brass

Body Breadth :

0.37 inch

Dielectric Withstanding Voltage :

2000VAC V

Operating Temp Range :

0C to 75C

Body/Shell Style :

PLUG

Connector Type :

BOARD CONNECTOR

Polarization Key :

POLARIZED HOUSING

Current Rating (Max) :

5/Contact(A)

Contact Pattern :

RECTANGULAR

Series :

*

Contact Gender :

FEMALE

Mounting Style :

CABLE

Insulation Diameter-Min :

0.045 inch

Mixed Contacts :

No
