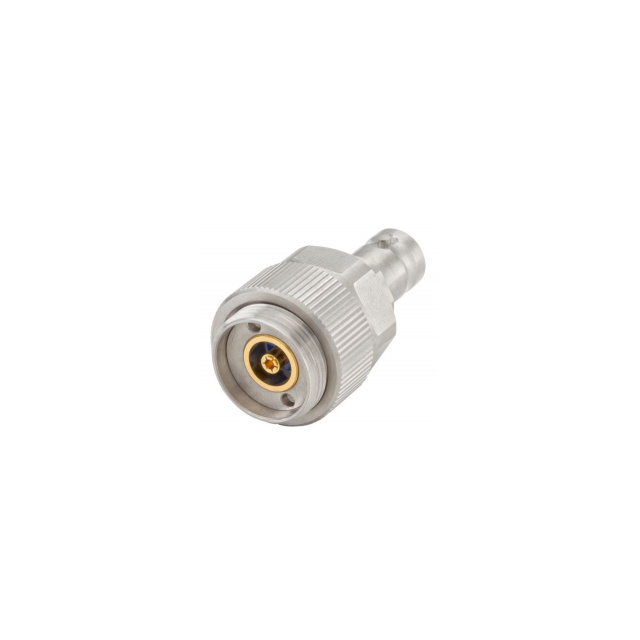

07P151-K00S3

Manufacturer :

Rosenberger

Product Category :

Coaxial Connector (RF) Adapters

Additional Feature :

VSWR MAX AT 4 GHZ

Impedance :

50Ohm

Option :

GENERAL PURPOSE

Body Material :

Beryllium Copper; Stainless Steel

Packaging :

Bulk

Center Contact Plating :

Gold

Panel Mount :

No

Fastening Type :

Bayonet Lock, Threaded

Published :

2006

Filter Feature :

No

RoHS Status :

RoHS Compliant

Series :

RPC

VSWR :

1.17

MIL Conformance :

No

IEC Conformance :

No

Center Contact Material :

BERYLLIUM COPPER

DIN Conformance :

No

Contact Gender :

FEMALE-FEMALE

Mounting Type :

Free Hanging (In-Line)

Insertion Loss :

0.2dB

JESD-609 Code :

e4

Operating Frequency-Max :

18GHz

Convert To (Adapter End) :

BNC Jack, Female Socket

Frequency (Max) :

4GHz

Operating Temperature :

-40°C~85°C

Conversion Type :

Between Series

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Coupling Type :

BAYONET-THREADED

Adapter Series :

BNC to BNC

Center Gender :

Female to Non-Gendered

Convert From (Adapter End) :

7mm Precision, Non-Gendered

Mating Cycles :

5000

Dielectric Material :

Polyphenylene Ether (PPE); Polytetrafluoroethylene (PTFE)

Style :

Straight
