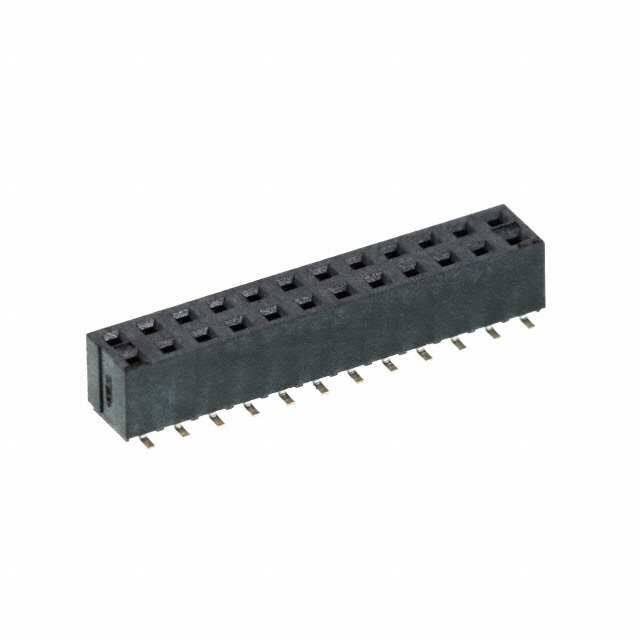

0791091011
Or copy the link below:
- Mfr.Part #
- 0791091011
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 24POS 0.079 GOLD SMD
- Stock
- 2,578
- In Stock ：
- 2,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Factory Lead Time :
- 11 Weeks
- Reference Standard :
- UL, CSA
- Total Number of Contacts :
- 24
- Termination :
- Solder
- Durability :
- 50 Cycles
- Mating Contact Pitch :
- 0.079 inch
- Series :
- Milli-Grid 79109
- Insulation Height :
- 0.175 4.45mm
- Number of Positions :
- 24
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- Number of Rows :
- 2
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- ECCN Code :
- EAR99
- Contact Type :
- Female Socket
- Mounting Type :
- Surface Mount
- Applications :
- Automotive, General Purpose, Telecommunications
- Contact Material :
- Phosphor Bronze
- Mounting Option 1 :
- LOCKING
- Reliability :
- COMMERCIAL
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.079 2.00mm
- Plating Thickness :
- 15μin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Voltage - Rated :
- 125V
- Operating Temperature :
- -55°C~125°C
- Insulation Color :
- Black
- Contact Resistance :
- 15mOhm
- Connector Type :
- Receptacle
- HTS Code :
- 8536.69.40.40
- Current Rating (Amps) :
- 1A
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Push-Pull
- Insulation Resistance :
- 5000000000Ohm
- Dielectric Withstanding Voltage :
- 500VAC V
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Positions Loaded :
- All
- Datasheets
- 0791091011
0791091011 Documents
.jpg)
2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP), Glass Filled 24 Positions Female Socket
0791091011 Overview
This product is packaged in a Receptacle box.Surface Mount indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Milli-Grid 79109 Series.There is the possibility of using the device for Automotive, General Purpose, Telecommunications.Operating temperature is set to -55°C~125°C.
0791091011 Features
Milli-Grid 79109 series
0791091011 Applications
There are a lot of Molex
0791091011 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
