0783950001

Share

Or copy the link below:

Mfr.Part #
0783950001
Manufacturer
Molex
Package / Case
Datasheet
Download
Description

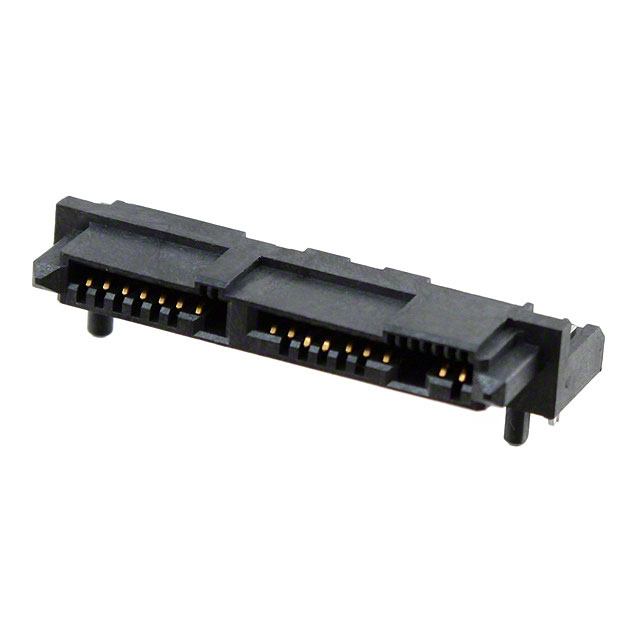

CONN MICRO SAS RCPT 25P SLD RA
Stock
25,558
In Stock :
25,558

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Pluggable Connector Assemblies
Insulator Color :
Black
Total Number of Contacts :
25
Filter Feature :
No
Board Mounting Option :
SPLIT BOARD LOCK
Plating Thickness :
30μin
RoHS Status :
ROHS3 Compliant
Contact Resistance :
45mOhm
Contact Arrangement :
S16P9
Additional Feature :
POLARIZED
Mounting Option 1 :
LOCKING
Feature :
Board Guide, Board Lock
Factory Lead Time :
16 Weeks
Withdrawl Force-Min :
.1112 N
Option :
GENERAL PURPOSE
Contact Finish :
Gold
Shell Material :
POLYETHYLENE
Series :
78395
Connector Type :
SAS, Micro
Pbfree Code :
yes
Mixed Contacts :
yes
Body Breadth :
0.246 inch
DIN Conformance :
No
MIL Conformance :
No
Packaging :
Tray
Reference Standard :
UL
Body Length or Diameter :
1.364 inch
Termination :
Solder
UL Flammability Code :
94V-0
Body Depth :
0.571 inch
Durability :
500 Cycles
Connector Style :
Receptacle
Insulation Material :
GLASS FILLED LIQUID CRYSTAL POLYMER
Contact Style :
SQ PIN-SKT
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Contact Gender :
FEMALE
Reliability :
COMMERCIAL
Mounting Type :
Surface Mount, Right Angle
Empty Shell :
No
Insertion Force-Max :
.8062 N
IEC Conformance :
No
Insulation Resistance :
1000000000Ohm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Rated Current (Signal) :
1.5A
Dielectric Withstanding Voltage :
500VAC V
Number of Positions :
25
Contact Finish Thickness :
30.0μin 0.76μm
Number of Conductors :
ONE
Operating Temperature (Max) :
55°C
Contact Material :
NOT SPECIFIED
Introducing Pluggable Connector Assemblies Molex 0783950001 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Right Angle, 0783950001 pinout, 0783950001 datasheet PDF, 0783950001 amp .Beyond Pluggable Connector Assemblies Molex 0783950001 ,we also offer 10120818-001C-TRLF, 0678005025, 2170088-2, Our vast inventory has you covered. Contact us now for immediate solutions.
