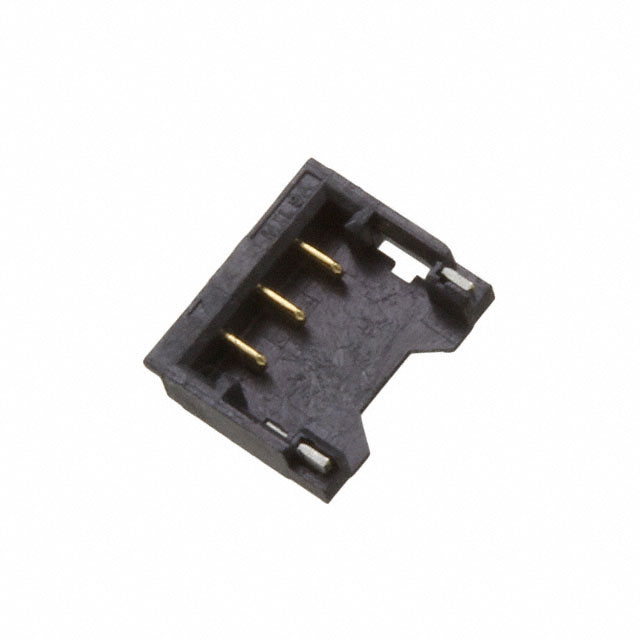

0781710003

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Packaging :

Tape and Reel (TR)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Color :

Black

Mixed Contacts :

No

JESD-609 Code :

e4

Factory Lead Time :

12 Weeks

Contact Material :

COPPER ALLOY

Mounting Type :

Surface Mount

Pbfree Code :

yes

Contact Shape :

RECTANGULAR

Shrouding :

Shrouded - 3 Wall

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

50V

Filter Feature :

No

Total Number of Contacts :

3

Additional Feature :

POLARIZED

Contact Type :

Tab

DIN Conformance :

No

Termination :

Solder

MIL Conformance :

No

IEC Conformance :

No

Number of Positions :

3

Operating Temperature :

-25°C~85°C

Number of Positions Loaded :

All

Pitch - Mating :

0.047 1.20mm

Contact Gender :

Male

Number of Rows :

1

Fastening Type :

Friction Lock

Applications :

Automotive, General Purpose, Lighting, Telecommunications

Insulation Height :

0.055 1.40mm

Feature :

Solder Retention

RoHS Status :

ROHS3 Compliant

Series :

Pico-EZmate 78171

Insulation Material :

Liquid Crystal Polymer (LCP)

Connector Type :

PLUG

Contact Finish - Mating :

Gold

Style :

Board to Cable/Wire
