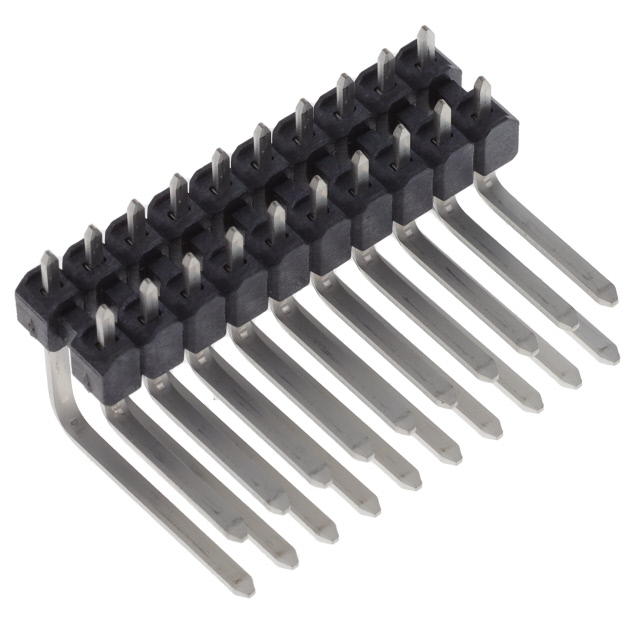

0759001401

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Number of Positions Loaded :

All

Contact Type :

Male Pin

Depth :

21.75mm

Radiation Hardening :

No

Connector Type :

Header, Breakaway

Min Operating Temperature :

-40°C

Filter Feature :

No

Current Rating :

16A

Fastening Type :

Push-Pull

MIL Conformance :

No

Applications :

Automotive

Mount :

Through Hole

Shrouding :

Unshrouded

Contact Resistance :

10MOhm

Contact Finish Thickness - Mating :

59.0μin 1.50μm

ECCN Code :

EAR99

Style :

Board to Cable/Wire

IEC Conformance :

No

Pitch - Mating :

0.138 3.50mm

Mixed Contacts :

No

Length :

35mm

Terminal Pitch :

3.5mm

Series :

MX150 75900

Max Operating Temperature :

125°C

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Number of Positions :

20

Contact Finish Thickness - Post :

59.0μin 1.50μm

Contact Length - Post :

0.120 3.05mm

RoHS Status :

ROHS3 Compliant

Packaging :

Tube

Housing Color :

Black

Termination :

Solder

Orientation :

RIGHT ANGLE

Insulation Height :

0.177 4.50mm

Contact Material :

Cartridge Brass

Housing Material :

Polymer

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

9 Weeks

Row Spacing - Mating :

0.236 (6.00mm)

Number of Circuits :

16

Contact Shape :

Square

Max Voltage Rating (DC) :

500V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Tin

Option :

GENERAL PURPOSE

DIN Conformance :

No

Pbfree Code :

yes

HTS Code :

8536.69.40.40
