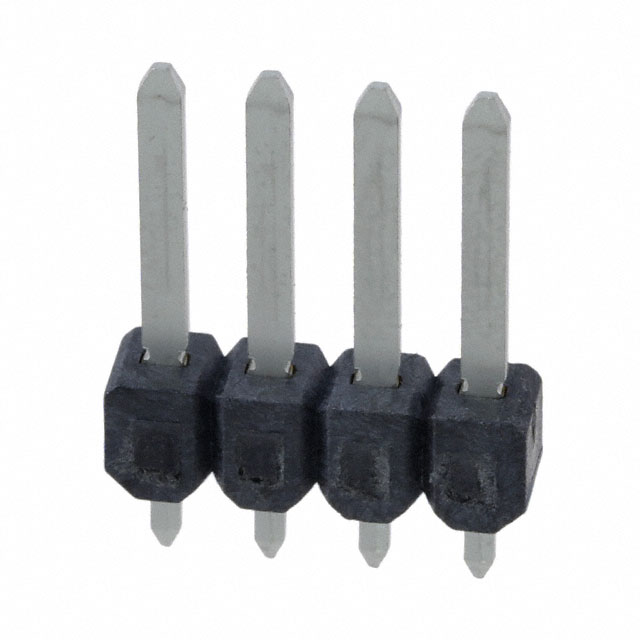

0757570441
Or copy the link below:
- Mfr.Part #
- 0757570441
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.5MM
- Stock
- 31,033
- In Stock ：
- 31,033
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Number of Rows :
- 1
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Insulation Color :
- Black
- Factory Lead Time :
- 10 Weeks
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Series :
- MX150 75757
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- MIL Conformance :
- No
- Overall Contact Length :
- 0.738 18.75mm
- Contact Material :
- Cartridge Brass
- Insulation Height :
- 0.177 4.50mm
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- Connector Type :
- Header, Breakaway
- Pitch - Mating :
- 0.138 3.50mm
- DIN Conformance :
- No
- Contact Length - Mating :
- 0.441 11.20mm
- Contact Finish Thickness - Post :
- 59.0μin 1.50μm
- Applications :
- Automotive
- Filter Feature :
- No
- Contact Length - Post :
- 0.120 3.05mm
- Terminal Pitch :
- 3.5mm
- IEC Conformance :
- No
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Contact Finish - Mating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 4
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Shrouding :
- Unshrouded
- Datasheets
- 0757570441
0757570441 Documents
MX150 75757 Series 1-Row Header, Breakaway Solder Cartridge Brass Tube Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 4-Position Board to Cable/Wire 0.177 4.50mm Height
0757570441 Overview
The product is packaged in Header, Breakaway.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the MX150 75757 Series.The device could be used for the following application: Automotive.
0757570441 Features
MX150 75757 series
0757570441 Applications
There are a lot of Molex
0757570441 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
