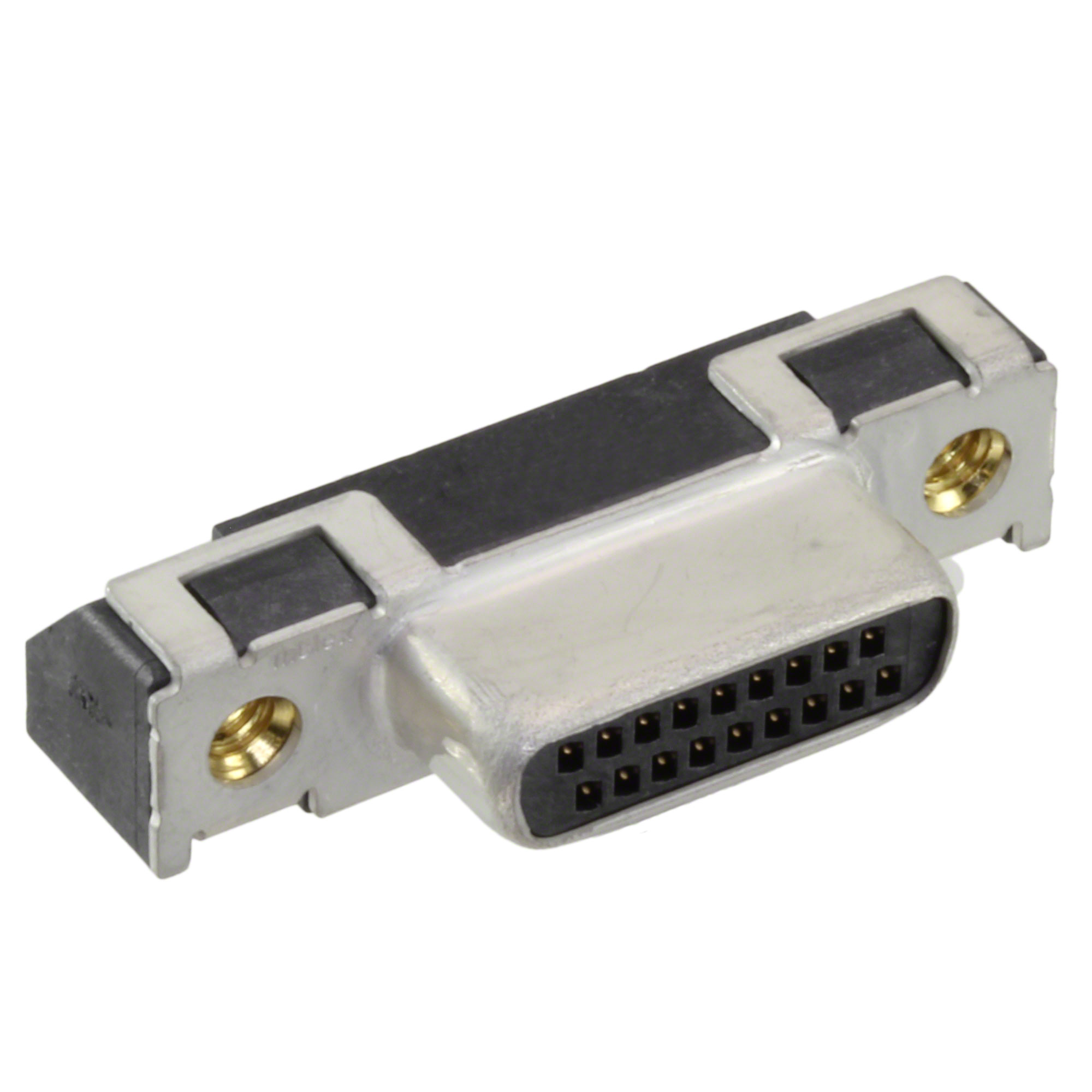

0749603018

Manufacturer :

Molex

Product Category :

D-Sub Connector Assemblies

Depth :

13.97mm

Contact Finish Thickness :

15.0μin 0.38μm

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e3

Shell Size, Connector Layout :

0.050 Pitch x 0.065 Row to Row

Pbfree Code :

yes

Color :

Black

Housing Material :

Polymer

Mount :

Surface Mount

Number of Contacts :

18

Mixed Contacts :

No

Orientation :

Right Angle, Vertical

Mounting Type :

Panel Mount, Surface Mount, Right Angle

Max Supply Voltage :

40V

MIL Conformance :

No

Feature :

Board Lock, Shielded

Filter Feature :

No

Gender :

Receptacle

Option :

GENERAL PURPOSE

Contact Finish :

Gold

Factory Lead Time :

9 Weeks

Radiation Hardening :

No

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Width :

7.65mm

Flange Feature :

Housing/Shell (4-40)

Number of Ports :

1

Shell Material, Finish :

Steel, Tin Plated

Number of Positions :

18

Connector Style :

D-Type

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle, Female Sockets

IEC Conformance :

No

Contact Type :

Signal

Empty Shell :

No

Operating Temperature :

-20°C~85°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

2

Contact Material :

COPPER ALLOY

Series :

PCI Express®, TDP™

DIN Conformance :

No

Additional Feature :

POLARIZED, SHEILDED

Dielectric Material :

Polymer, Glass Filled

Current Rating :

1.5A

Length :

30.48mm

Pitch :

640μm
