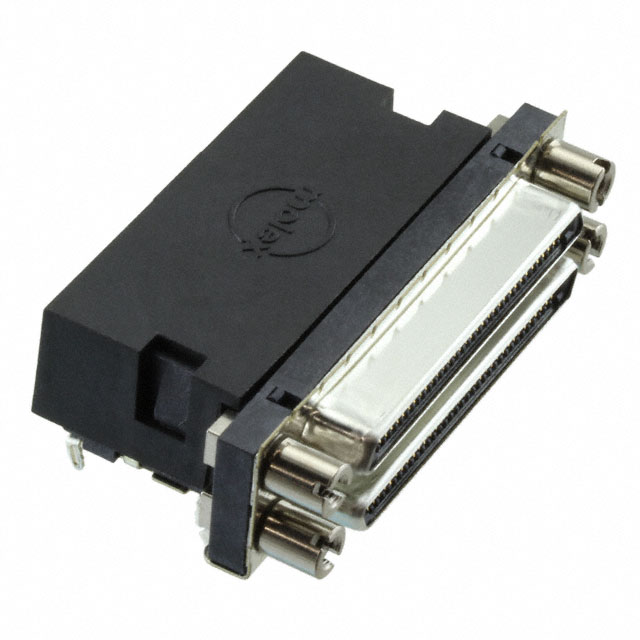

0743370053

Manufacturer :

Molex

Product Category :

Centronics Connectors

Orientation :

RIGHT ANGLE

Mounting Type :

Through Hole, Right Angle

Housing Material :

Thermoplastic

Number of Contacts :

136

Type :

SCSI+, VHDCI

Termination :

Solder

Flange Feature :

Mating Side (M2)

Min Operating Temperature :

-55°C

IEC Conformance :

No

Length :

42.7mm

DIN Conformance :

No

Pbfree Code :

yes

Mount :

Through Hole

Contact Finish :

Gold

Connector Style :

Outer Shroud Contacts

RoHS Status :

Non-RoHS Compliant

Color :

Black

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

FEMALE

Number of Rows :

2

Contact Material :

Bronze

Feature :

Board Lock, Cover, Shielded

Series :

Ultra+ VHDCI 74337

Option :

GENERAL PURPOSE

Filter Feature :

No

Pitch :

1.6mm

Number of Positions :

68, 68

Empty Shell :

No

Depth :

24.82mm

Mixed Contacts :

No

Connector Type :

Stacked, 2 Receptacles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material :

POLYETHYLENE

MIL Conformance :

No

Reach Compliance Code :

Unknown

Max Voltage Rating (AC) :

30V

Current Rating :

500mA

Lead Pitch :

800μm

Contact Finish Thickness :

Flash

Max Operating Temperature :

85°C
