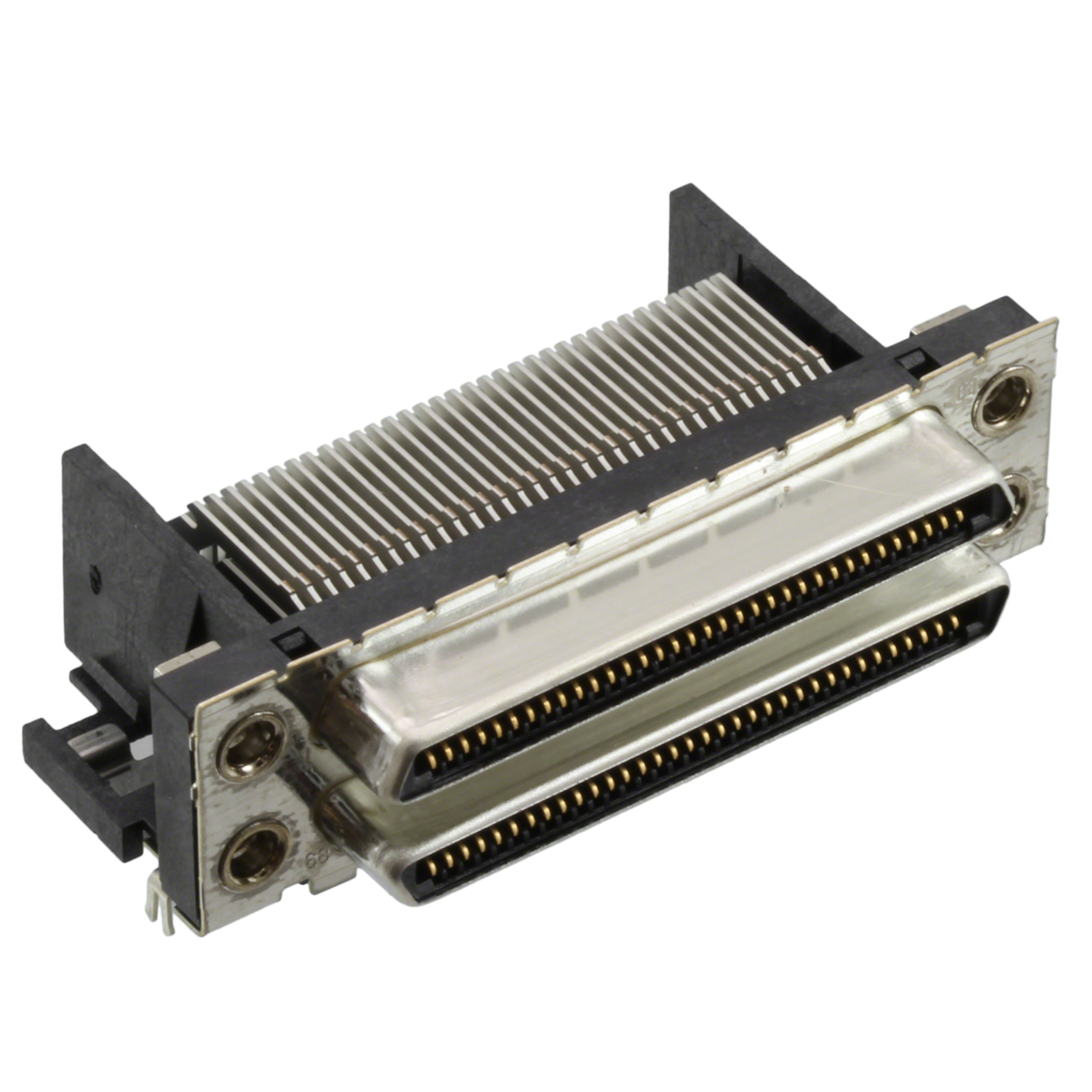

0743370015

Manufacturer :

Molex

Product Category :

Centronics Connectors

Option :

GENERAL PURPOSE

Empty Shell :

No

Number of Positions :

68, 68

Contact Finish Thickness :

Flash

Voltage - Rated AC :

30V

MIL Conformance :

No

Insulation Resistance :

500MOhm

Mount :

Panel, Through Hole

Housing Material :

Thermoplastic

Current Rating :

500mA

Length :

42.7mm

Filter Feature :

No

Pitch :

1.6mm

Orientation :

RIGHT ANGLE

Mixed Contacts :

No

Feature :

Board Lock, Shielded

Max Operating Temperature :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Stacked, 2 Receptacles

Pbfree Code :

yes

Type :

SCSI+, VHDCI

DIN Conformance :

No

Gender :

Receptacle

Contact Material :

Bronze

Mounting Type :

Panel Mount, Through Hole, Right Angle

Number of Contacts :

136

Connector Style :

Outer Shroud Contacts

Depth :

24.82mm

Shell Material :

POLYETHYLENE

ECCN Code :

EAR99

UL Flammability Code :

94V-0

RoHS Status :

Non-RoHS Compliant

Contact Plating :

Gold, Tin

Termination :

Solder

Lead Pitch :

800μm

Flange Feature :

Housing/Shell (M2.6)

HTS Code :

8536.69.40.30

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

2

Contact Finish :

Gold

IEC Conformance :

No

Series :

Ultra+ VHDCI 74337

Min Operating Temperature :

-55°C
