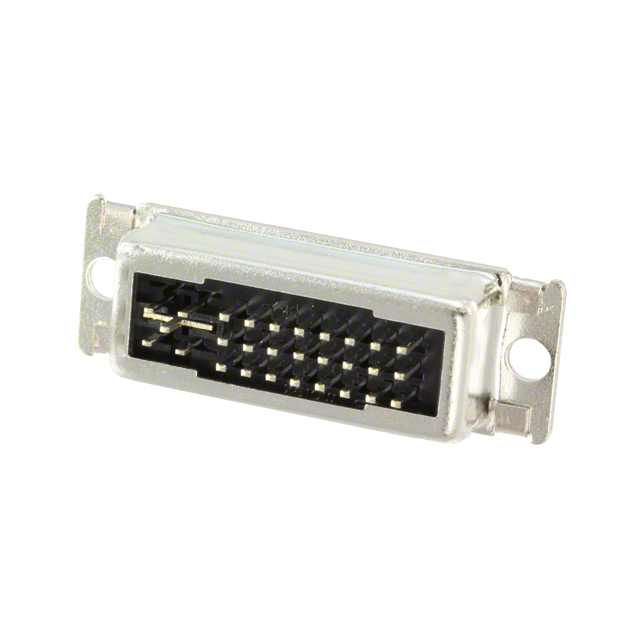

0743232133

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

ECCN Code :

EAR99

Packaging :

Tray

Mounting Type :

Through Hole

Series :

MicroCross 74323

Shielding :

Shielded

Termination :

Solder

IEC Conformance :

No

Option :

GENERAL PURPOSE

Voltage - Rated :

40VAC

Length :

36.83mm

Number of Ports :

1

Connector Type :

DVI-I, Dual Link

Number of Circuits :

23

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Empty Shell :

No

Gender :

PLUG

Shell/Shielding Material :

Steel Alloy

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

Housing Material :

Thermoplastic

UL Flammability Code :

94V-0

Orientation :

Vertical

Max Voltage Rating (AC) :

40V

Mating Cycles :

100

Insulation Color :

Black

Operating Temperature :

-20°C~85°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

DIN Conformance :

No

Contact Material :

NOT SPECIFIED

Contact Plating :

Gold, Tin

Mount :

Through Hole, Vertical

Shell Material :

POLYETHYLENE

MIL Conformance :

No

Additional Feature :

POLARIZED

Current Rating :

3A

Mixed Contacts :

No

Current Rating (Amps) :

3A per Contact

Mounting Feature :

Flange, Vertical

Filter Feature :

No

Number of Contacts :

29

Pbfree Code :

yes

Number of Rows :

3
