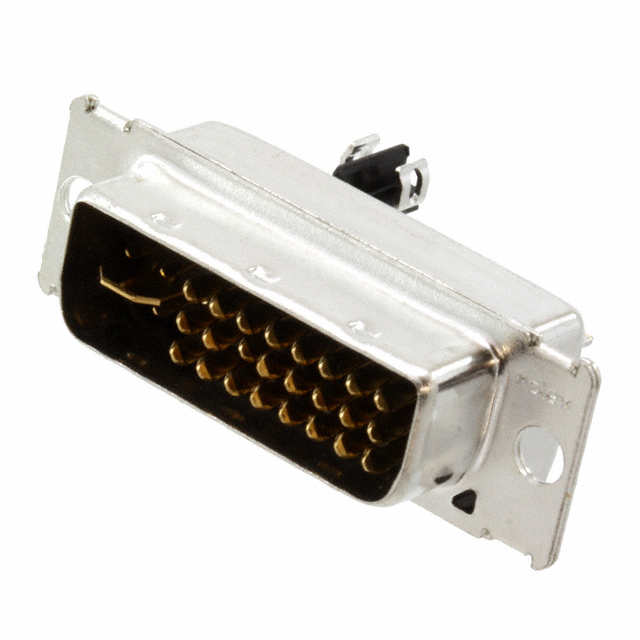

0743232033

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Contact Finish :

Gold

Mating Cycles :

100

JESD-609 Code :

e3

IEC Conformance :

No

Lead Pitch :

2.54mm

Radiation Hardening :

No

Max Voltage Rating (AC) :

40V

Mounting Type :

Free Hanging (In-Line)

Connector Type :

DVI-I, Dual Link

Mounting Feature :

Flange

Shell Material :

POLYETHYLENE

Empty Shell :

No

Series :

MicroCross 74323

Termination :

Solder

Current Rating :

3A

MIL Conformance :

No

Filter Feature :

No

Current Rating (Amps) :

3A per Contact

Number of Rows :

3

Mount :

Panel

Shielding :

Shielded

Option :

GENERAL PURPOSE

Number of Ports :

1

Voltage - Rated AC :

40V

Total Number of Contacts :

29

Housing Material :

Thermoplastic

Packaging :

Tray

Number of Positions :

29

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Gender :

PLUG

Operating Temperature :

-20°C~85°C

Body Material :

Metal

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Material :

Copper

Pbfree Code :

yes

Shell/Shielding Material :

Steel Alloy

Voltage - Rated :

40VAC

Mixed Contacts :

No

Orientation :

Vertical

Insulation Color :

Black

Material Flammability Rating :

UL94 V-0

DIN Conformance :

No

REACH SVHC :

Unknown
