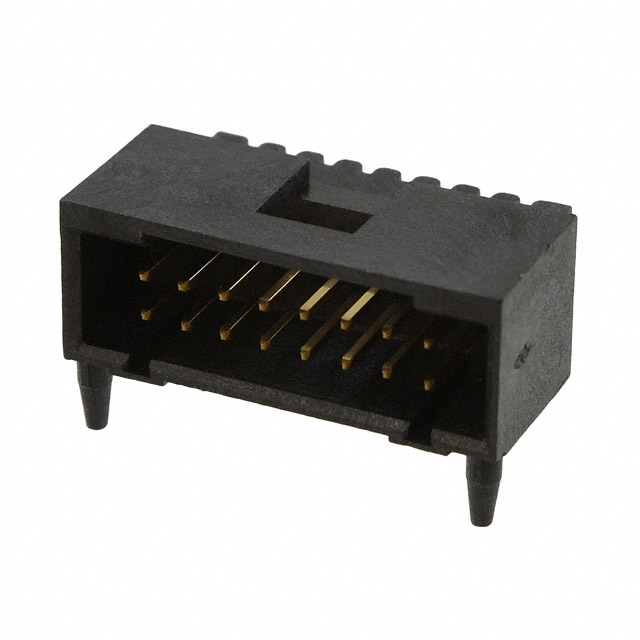

0741640016
Or copy the link below:
- Mfr.Part #
- 0741640016
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 16POS 2.54MM
- Stock
- 12,312
- In Stock ：
- 12,312
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Contact Finish - Post :
- Tin
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Number of Positions :
- 16
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Length - Mating :
- 0.315 8.00mm
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tube
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Black
- Contact Length - Post :
- 0.130 3.30mm
- Feature :
- Board Guide
- Contact Material :
- COPPER ALLOY
- Pbfree Code :
- yes
- Fastening Type :
- Latch Holder
- Insulation Height :
- 0.420 10.67mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Series :
- C-Grid 74164
- Connector Type :
- Receptacle
- Factory Lead Time :
- 5 Weeks
- Termination :
- Solder
- Row Spacing - Mating :
- 0.100 (2.54mm)
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Style :
- Board to Board
- Datasheets
- 0741640016
C-Grid 74164 Series 2-Row Receptacle Solder Copper Alloy Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 16-Position Board to Board 0.420 10.67mm Height
0741640016 Overview
Packaging is Receptacle.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the C-Grid 74164 Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.With its Board Guide feature, it is more powerful in many ways.
0741640016 Features
C-Grid 74164 series
0741640016 Applications
There are a lot of Molex
0741640016 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
