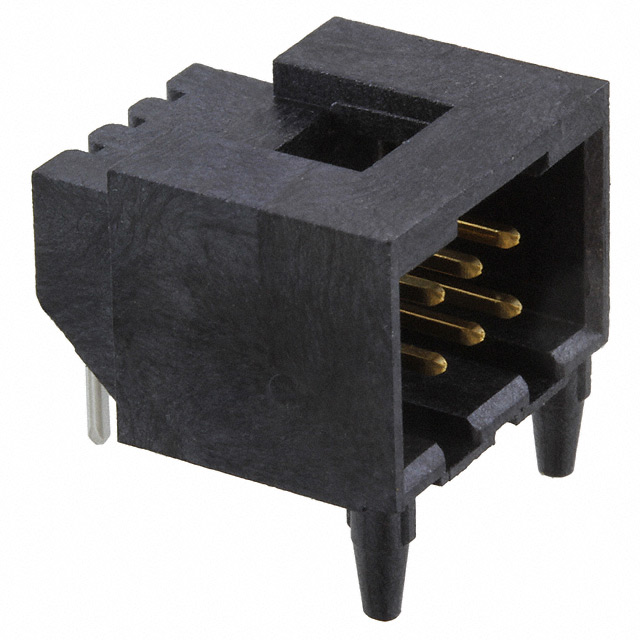

    Images are for reference only.

    Delivery：

    Payment：

    0741640006

    Share

    Or copy the link below:

    Mfr.Part #
    0741640006
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER R/A 6POS 2.54MM
    Stock
    3,059
    In Stock ：
    3,059

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Contact Type :
    Male Pin
    Packaging :
    Tube
    Number of Rows :
    2
    Applications :
    Automotive, General Purpose, Lighting, Medical, Telecommunications
    Contact Finish - Post :
    Tin
    Termination :
    Solder
    Row Spacing - Mating :
    0.100 (2.54mm)
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Fastening Type :
    Latch Holder
    Insulation Height :
    0.420 10.67mm
    Insulation Color :
    Black
    Number of Positions :
    6
    Mounting Type :
    Through Hole, Right Angle
    Shrouding :
    Shrouded - 4 Wall
    Insulation Material :
    Liquid Crystal Polymer (LCP), Glass Filled
    Contact Finish Thickness - Post :
    74.8μin 1.90μm
    Pbfree Code :
    yes
    RoHS Status :
    ROHS3 Compliant
    Contact Material :
    COPPER ALLOY
    Factory Lead Time :
    6 Weeks
    Contact Finish - Mating :
    Gold
    Connector Type :
    Receptacle
    Feature :
    Board Guide
    Contact Length - Post :
    0.130 3.30mm
    Series :
    C-Grid 74164
    Style :
    Board to Board
    Material Flammability Rating :
    UL94 V-0
    Number of Positions Loaded :
    All
    Contact Shape :
    Square
    Contact Finish Thickness - Mating :
    15.0μin 0.38μm
    Pitch - Mating :
    0.100 2.54mm
    Contact Length - Mating :
    0.315 8.00mm
    Datasheets
    0741640006
    Introducing Headers, Male Pins Molex 0741640006 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, Right Angle, 0741640006 pinout, 0741640006 datasheet PDF, 0741640006 amp .Beyond Headers, Male Pins Molex 0741640006 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0741640006


    C-Grid 74164 Series 2-Row Receptacle Solder Copper Alloy Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 6-Position Board to Board 0.420 10.67mm Height

    0741640006 Overview


    The packaging contains Receptacle.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number C-Grid 74164 belongs to the C-Grid 74164 Series.In addition to Automotive, General Purpose, Lighting, Medical, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.

    0741640006 Features


    C-Grid 74164 series


    0741640006 Applications


    There are a lot of Molex
    0741640006 Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
