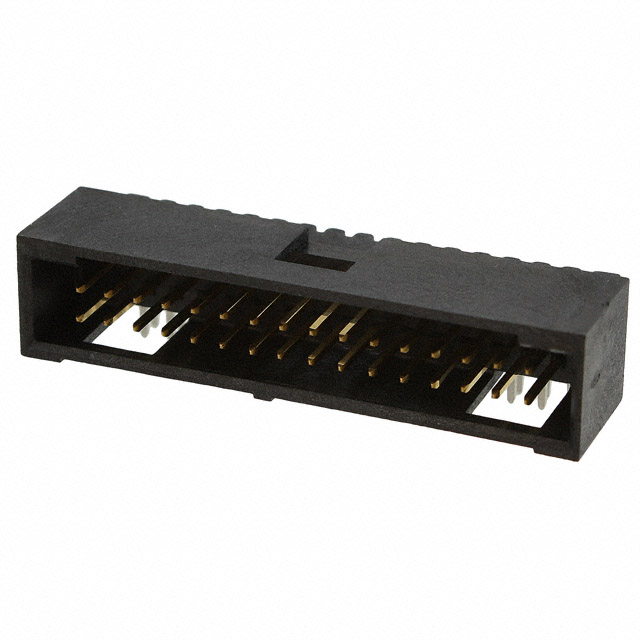

0741621232

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Post :

Tin

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.100 2.54mm

Connector Type :

Receptacle

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

ECCN Code :

EAR99

Fastening Type :

Latch Holder

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

No

Insulation Color :

Black

MIL Conformance :

No

Insulation Height :

0.420 10.67mm

Number of Positions Loaded :

All

Contact Finish Thickness - Post :

74.8μin 1.90μm

DIN Conformance :

No

Factory Lead Time :

9 Weeks

Contact Length - Mating :

0.315 8.00mm

Applications :

Automotive, General Purpose, Lighting, Medical, Telecommunications

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Series :

C-Grid 74162

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

15.0μin 0.38μm

Contact Length - Post :

0.130 3.30mm

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Mixed Contacts :

No

Number of Rows :

2

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish - Mating :

Gold

Filter Feature :

No

Row Spacing - Mating :

0.100 (2.54mm)

Packaging :

Tube

Contact Type :

Male Pin

Number of Positions :

32

Style :

Board to Board

Mounting Type :

Through Hole, Right Angle
